CNC Router with Vacuum Table

CNC Router with Vacuum Table – Precision Manufacturing Solution

Shandong Yuhui Laser Technology presents our industrial CNC Router with Vacuum Table, engineered to deliver unmatched precision and efficiency for large-scale production environments. Our system features working accuracies of ±0.08/300mm and max engraving speeds reaching 20,000mm/min.

With vacuum power options of 5.5KW and 7.5KW, the table generates powerful suction force that eliminates manual clamping entirely. Equipped with linear square rails and rack gear transmission, our product maintains dimensional stability across working sizes from 1200×1200mm up to 2000×4000mm.

Every unit undergoes strict CE and ISO-certified quality control procedures. We guarantee 450-day warranty coverage and service life 1.5 times longer than comparable equipment on the market.

What Makes Our Vacuum Table Technology Different?

Rapid Material Fixation Without Manual Intervention

Your operators will save valuable setup time with our advanced vacuum adsorption system. The table fixes materials firmly across the entire surface, preventing displacement during high-speed cutting and engraving operations.

Traditional mechanical clamps create pressure points that can deform thin sheets. Our system distributes holding force evenly, so you achieve consistent edge quality on every piece.

Multi-Zone Suction Control for Maximum Flexibility

You can activate vacuum zones independently based on your workpiece dimensions. This intelligent design reduces energy consumption while maintaining optimal holding power exactly where you need it.

The phenolic resin bed resists thermal expansion and chemical damage from coolants. Its surface flatness remains within ±0.05mm tolerance, ensuring your Z-axis depth consistency never varies.

Industrial-Grade Components Built for Continuous Operation

We've equipped your product with high-performance pumps designed for 24/7 production schedules. The 3KW dust collector works in tandem with the vacuum system to prevent particle interference with seal integrity.

Spindle options from 3KW to 9KW give you the flexibility to process everything from MDF cabinetry to aluminum composite panels. The 6000-24000rpm speed range accommodates various tool diameters and material hardness levels.

Technical Specifications

Key Applications Across Industries

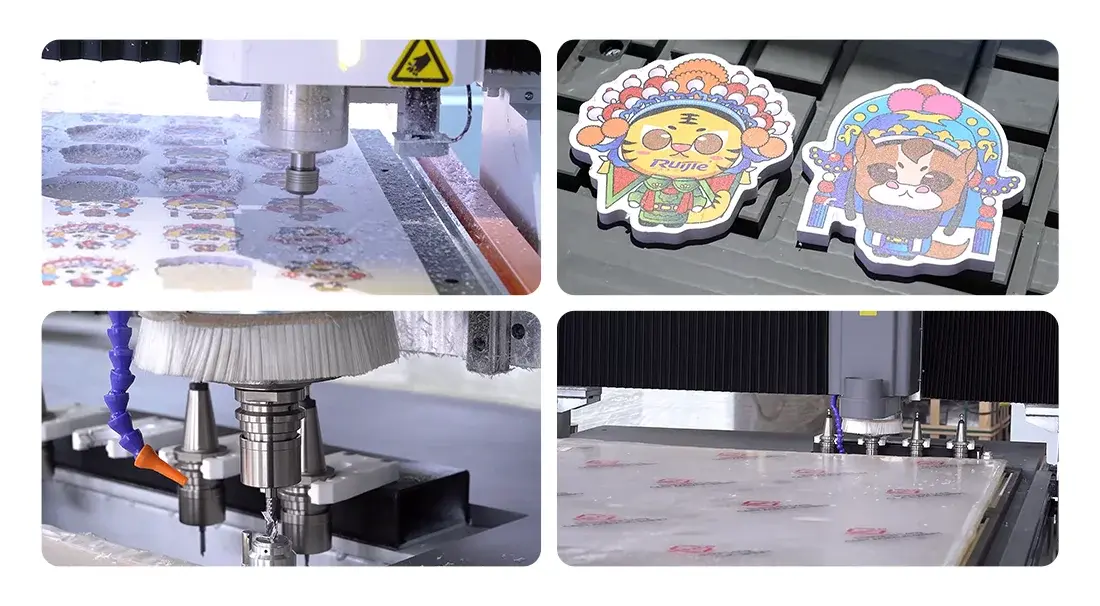

Cabinet and Furniture Manufacturing

High-volume nesting operations benefit enormously from vacuum hold-down technology. You can process MDF and plywood sheets continuously without stopping to reposition clamps.

The system enables full-perimeter edge machining, so every piece exits with clean, finished edges ready for assembly. Your production throughput increases while labor costs decrease.

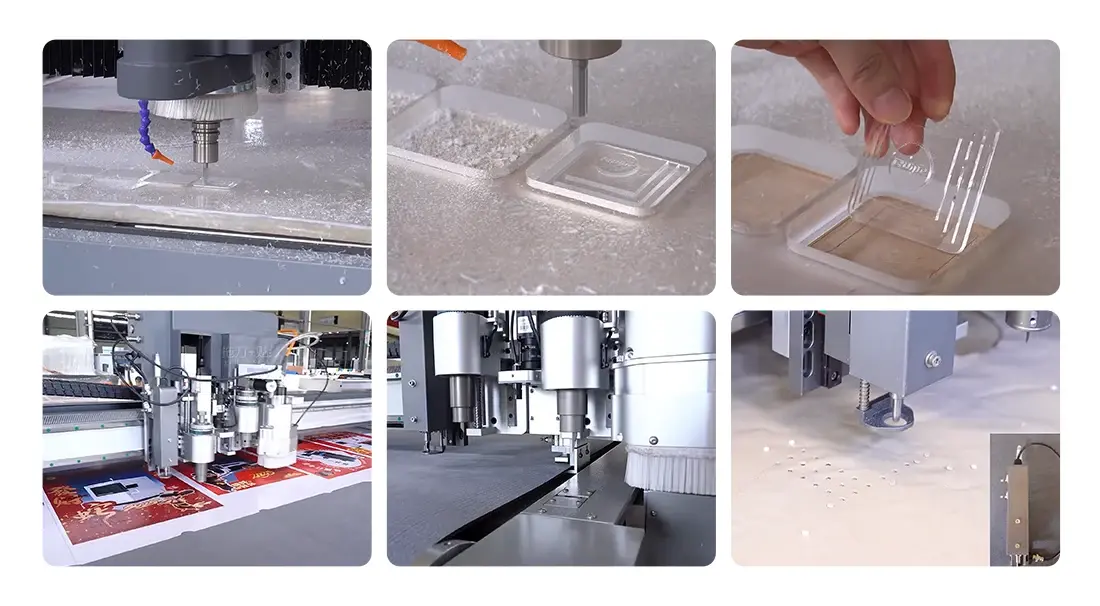

Signage and Advertising Production

Thin acrylic sheets require perfectly flat support during cutting to prevent the "lifting effect" that creates jagged edges. Our vacuum table maintains uniform pressure across the entire surface.

You'll achieve high-polish edge quality without secondary finishing operations. This translates directly to faster turnaround times for your customer orders.

Aerospace Component Machining

When you're working with thin aluminum skins or honeycomb structures, mechanical clamps can distort material profiles. Our CNC Router with Vacuum Table maintains strict dimensional tolerances without introducing stress points.

The vibration-damping properties of vacuum fixation reduce tool breakage and extend cutter life, lowering your consumable costs significantly.

Why Choose Yuhui Laser Technology?

Factory-Direct Advantages You Can Measure

As the manufacturer, we eliminate middleman markups and pass those savings to you. Our modern facility in Weifang maintains sufficient inventory to support standard production lead times within 14 business days.

You get competitive pricing without compromising on performance or build quality. Every machine ships with THF4 military-grade optical components for stable long-term operation.

Customization Services Tailored to Your Process

We support both OEM and ODM production based on your specific requirements. Our engineering team can modify machine structures, software systems, and processing parameters to match your materials and production environment.

Whether you need specialized tooling configurations or custom software interfaces, we provide solutions that integrate seamlessly with your existing workflow.

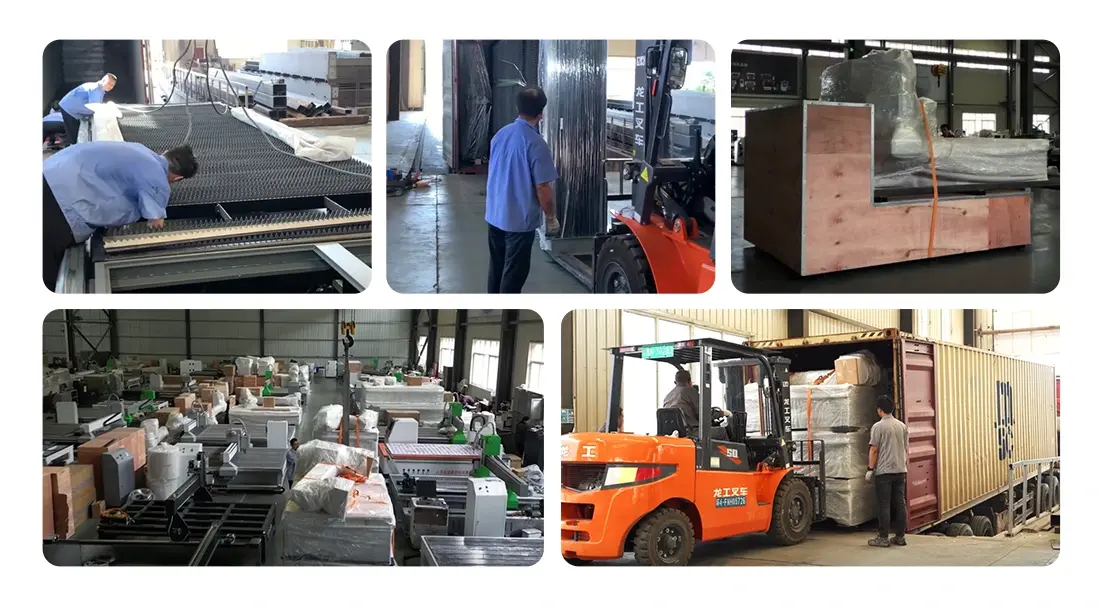

Reliable Global Logistics Network

Our strategic partnerships with professional freight companies ensure your equipment arrives safely and on schedule. We handle international shipping documentation and coordinate delivery to your facility location.

You receive tracking updates throughout the shipping process. Our logistics expertise covers multiple regions worldwide with proven reliability.

Comprehensive Support Throughout Equipment Lifecycle

450-Day Warranty Coverage

Your investment is protected by our industry-leading 450-day warranty period. This extended coverage reflects our confidence in the manufacturing quality and component durability of every system we produce.

Technical support remains available throughout the warranty period and beyond. We're committed to maximizing your equipment uptime and production efficiency.

Installation and Training Assistance

Our specialized group gives proficient establishment direction to guarantee legitimate setup and calibration. You'll get comprehensive operation preparing that covers schedule upkeep strategies and investigating protocols.

We prepare your administrators with the information they require to run the machine effectively from day one. This decreases your learning bend and quickens return on investment.

Fast-Response Specialized Support

When you require help, our back group reacts rapidly to analyze issues and give arrangements. We keep up point by point documentation and symptomatic methods that empower quick issue resolution.

Remote help capabilities permit us to troubleshoot numerous circumstances without requiring on-site visits, minimizing any potential generation interruptions.

​​​​​​​

Frequently Asked Questions

Q: How does the vacuum framework handle little parts?

A: You can utilize gasketing tape or onion cleaning methods to concentrate suction in particular zones. This avoids little components from moving amid cutting operations.

Q: What support does the vacuum pump require?

A: Customary channel cleaning is fundamental to keep up suction effectiveness. Fluid ring pumps require intermittent water level checks, whereas dry vane pumps require oil changes agreeing to the upkeep schedule.

Q: Can I prepare materials with distinctive thicknesses on the same table?

A: Yes, the multi-zone valve framework lets you alter suction dissemination based on workpiece characteristics. Thicker materials may require less dynamic zones than lean sheets.

Q: How frequently ought to I reemerge the spoilboard?

A: Reemerging gets to be vital when you take note profound grooves or levelness deviation. For overwhelming generation situations, this ordinarily happens each 20-50 working hours.

Q: What control supply does the framework require?

A: The standard arrangement works on AC380V/50Hz three-phase control. Elective voltage alternatives can be indicated amid the requesting prepare for diverse territorial necessities.

Start Your Precision Manufacturing Journey

Contact us today at jianghui@yuhui-laser-tech.com for detailed specifications, custom quotes, and technical consultation on the CNC Router with Vacuum Table.
