Co₂ Laser Constant Light Path Rack Cutting Machine

Shandong Yuhui Laser Technology Co., Ltd. presents our enterprise-grade Co₂ Laser constant light path rack cutting machine, engineered to deliver unmatched precision across large-format processing applications. This advanced system features a constant light path design that maintains uniform laser energy across the entire working area, eliminating transmission loss regardless of your cutting head position.

With positioning accuracy of ≤±0.01mm and power options ranging from 60W to 280W GSI, you'll experience consistent beam quality and cutting performance. Our machine is equipped with military-grade THF4 optical lenses and a robust rack-and-pinion drive system, ensuring stable operation even during high-speed processing.

The service life exceeds similar products by 1.5 times, with a remarkable 5-year storage capability without power decay. Backed by CE and ISO certification, we offer an industry-leading 450-day warranty.

Why Choose Our Constant Light Path Technology?

Uncompromised Optical Stability

Traditional flying optics systems suffer from varying beam distances as the cutting head moves across your workpiece. This creates inconsistent spot sizes and power density fluctuations.

Our product solves this critical challenge through advanced compensatory mirror systems. The laser beam travels exactly the same distance at every coordinate on your worktable, whether you're cutting at position (0,0) or (2500,1600).

This means you get identical cutting quality in all corners of your work area. No more edge inconsistencies or power variations that compromise your final product.

Superior Mechanical Performance

The helical rack and pinion transmission system delivers exceptional advantages over belt-driven alternatives. You'll benefit from higher load capacity, reduced mechanical noise, and zero belt stretch over time.

With stepper motor high-subdivision driving and RUIDA DSP control, your machine maintains positioning accuracy even during rapid direction changes. This matters when you're processing complex geometries or running high-volume production batches.

The adjustable alloy structure and excellent heat dissipation design ensure thermal stability during extended operation cycles. Your cutting quality remains consistent from the first piece to the thousandth.

Technical Specifications

Industry Applications

Heavy-Duty Acrylic Fabrication

When you're producing thick acrylic displays for the signage industry, edge quality determines your competitive advantage. Our machine processes 20mm-30mm acrylic sheets with perfectly vertical polished edges across 3-meter panels.

The constant light path ensures uniform energy distribution, preventing the edge angle variations that occur with standard machines. Your clients receive consistent products regardless of where features are positioned on the sheet.

Die-Board Manufacturing

Packaging industry die-makers face demanding tolerance requirements. You need to cut 15mm-18mm plywood laser dies with precise kerfs for steel rule insertion.

The rack-and-pinion system provides the mechanical rigidity and torque necessary to maintain tight tolerances during complex pattern cutting. Belt-driven systems simply cannot sustain this level of precision under heavy load conditions.

Industrial Composite Processing

Automotive and aerospace supply chains require processing large-format non-metal composites in high-production environments. Our Co₂ Laser constant light path rack cutting machine handles complex geometries and material resistance without compromising throughput.

The robust construction withstands high-dust industrial conditions while maintaining consistent cutting quality. You'll meet demanding delivery schedules without sacrificing dimensional accuracy.

Manufacturing Excellence

Certified Production Standards

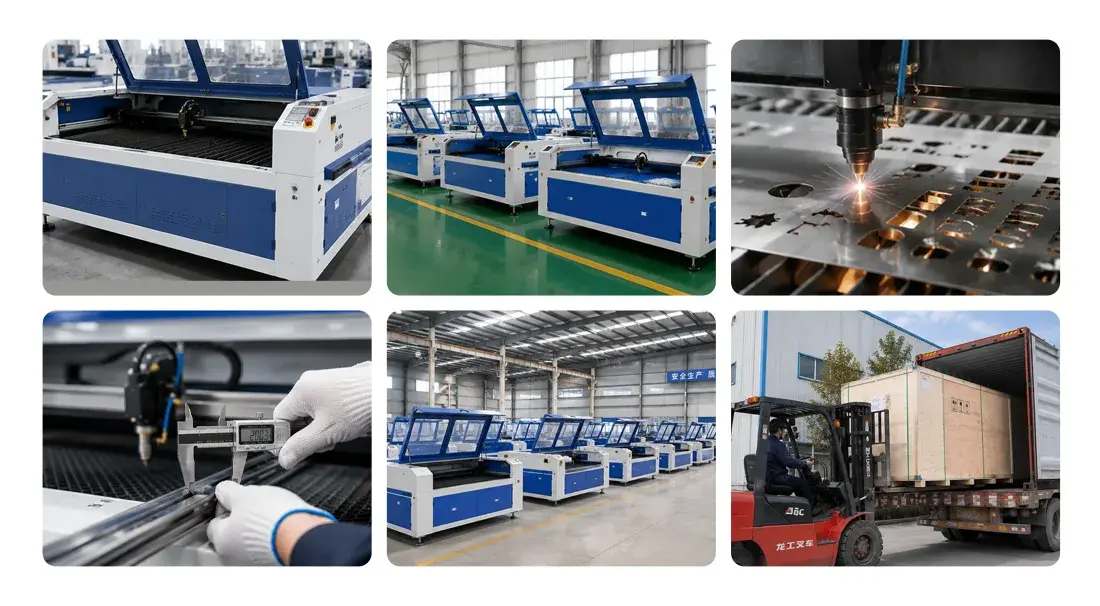

Our manufacturing facility operates under CE and ISO certified quality management systems. Every machine undergoes strict quality control procedures throughout production and final inspection stages.

We utilize Renishaw laser interferometers to calibrate pitch error and compensation in the rack system. Four-corner pulse testing validates beam path alignment with spot center deviation under 0.1mm across the full travel range.

Factory-Direct Advantages

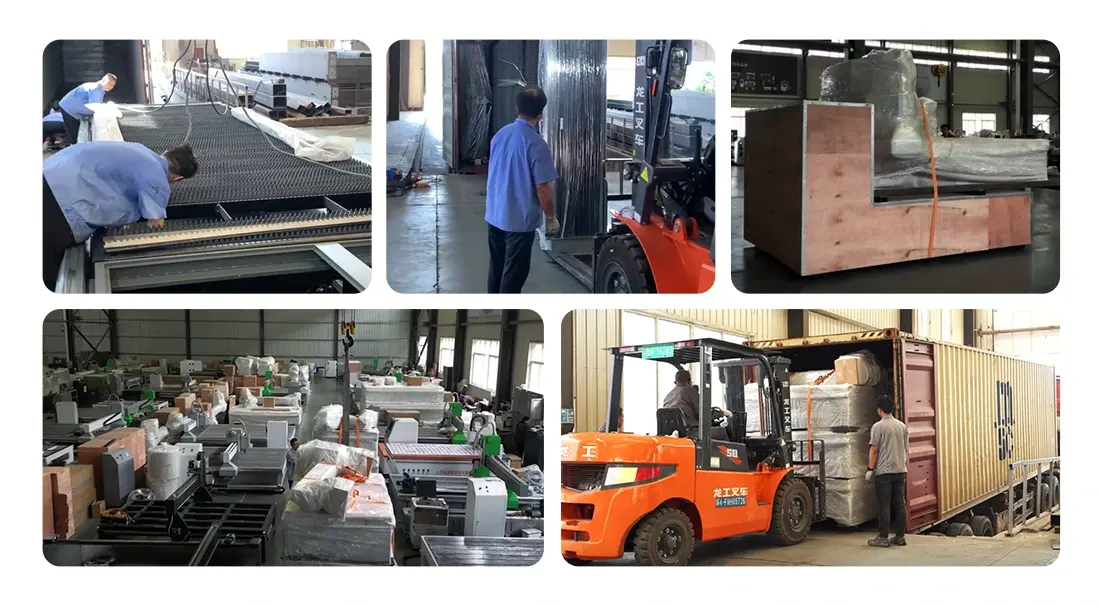

As the direct manufacturer, we eliminate middlemen and pass cost savings directly to you. Our modern facility maintains sufficient inventory to support fast delivery, with standard production lead times within 14 business days.

Strategic partnerships with professional logistics companies ensure reliable international shipping to your location. You receive competitive pricing without compromising on quality or performance.

Customization Capabilities

Tailored to Your Requirements

We understand that your production environment has unique demands. Our engineering team supports OEM and ODM production based on your drawings and technical specifications.

Whether you need customized machine structures, specialized software systems, or processing solutions for specific materials, we'll configure the product to match your workflow.

Industry-Specific Optimization

From machinery manufacturing to advertising signage, automotive parts to hardware processing, we've delivered solutions across diverse sectors. This experience informs our customization approach, ensuring your machine integrates seamlessly with existing production lines.

Comprehensive Support System

Extended Warranty Protection

Your speculation is ensured by our industry-leading 450-day guarantee and specialized bolster program. This amplified scope reflects our certainty in the machine's solidness and execution stability.

Professional establishment direction, operation preparing, and upkeep help guarantee your group maximizes efficiency from day one. Our specialized reaction group addresses any concerns rapidly to minimize downtime.

Long-Term Value

The same detail machine conveys 1.5 times the benefit life compared to comparable items. Indeed after one year of ceaseless utilize, control yield remains reliable without degradation.

With appropriate capacity, your machine keeps up full capability for up to 5 a long time without control rot. This long-term unwavering quality interprets to lower add up to fetched of proprietorship and superior return on investment.

Frequently Asked Questions

Q: What makes consistent light way innovation predominant to flying optics?

A: Steady light way frameworks keep up indistinguishable pillar travel remove over your whole work zone, guaranteeing uniform spot measure and control thickness. Flying optics encounter changing separations that cause control variances and conflicting cutting quality, particularly on large-format machines.

Q: Which materials can I prepare with this machine?

A: You can cut and imprint a wide run of non-metallic materials counting acrylic, wood, plywood, MDF, calfskin, texture, paper, elastic, and certain composites. The machine moreover handles specific metal sheet etching applications where tall accuracy is required.

Q: How does the rack and pinion framework move forward performance?

A: Helical racks give more noteworthy surface contact than belts, coming about in higher stack capacity, moved forward situating precision, and zero extend over time. You'll involvement decreased commotion, superior increasing speed characteristics, and steady execution amid heavy-duty processing.

Q: What causes cutting irregularities in standard machines?

A: Common issues incorporate optical way deviation, point blunders in reflector mirrors, uneven worktables, unsteady laser control, and unseemly etching speeds. Our steady light way plan and accuracy mechanical development kill these factors for solid results.

Q: What quality control forms guarantee machine accuracy?

A: Each unit experiences pillar way arrangement approval, geometric exactness calibration utilizing laser interferometric, energetic adjusting tests at top increasing speed, perpendicularity confirmation, and 24-hour stretch testing beneath greatest stack conditions.

Q: Can you customize the working estimate for my particular needs?

A: Completely. We offer standard sizes of 1300×1800mm, 1300×2500mm, and 1600×2500mm, with full customization accessible based on your generation necessities and office constraints.

Q: What preparing and bolster do you provide?

A: We give comprehensive establishment direction, hands-on operation preparing for your group, and progressing specialized back all through the guarantee period and past. Our specialized group reacts rapidly to guarantee continuous generation.

Start Cutting with Precision Today

Ready to elevate your production capabilities with Co₂ Laser constant light path rack cutting machine? Email our team at jianghui@yuhui-laser-tech.com for technical consultation and competitive pricing.
