H Model Plate Fiber Laser Cutting Machine

H Model Plate Fiber Laser Cutting Machine: Industrial-Grade Precision for Heavy-Duty Metal Fabrication

Shandong Yuhui Laser Technology delivers the H Model Plate Fiber Laser Cutting Machine, a premium industrial solution engineered for 24/7 continuous production. This machine features a heavy-duty H-type structural bridge ensuring exceptional stability during high-speed operations up to 70m/min.

Equipped with adjustable alloy construction and military-grade THF4 lenses, it maintains positioning accuracy of ±0.03mm/m across laser power ranging from 3000W to 30000W. The service life extends 1.5 times longer than competitors, with non-degrading performance even after years of operation. Our CE and ISO certified manufacturing guarantees reliable power output that remains consistent throughout the extended 450-day warranty period.

Why Choose Our H Model Plate Fiber Laser Cutting Machine?

Your production demands equipment that won't compromise when processing thick metal plates day after day. The product solves critical manufacturing challenges through intelligent engineering.

The heavy-bed design eliminates thermal deformation issues common in standard models. You'll experience zero structural flex even when cutting 50mm carbon steel at maximum acceleration.

Light crossbeam construction enables rapid traverse speeds without sacrificing precision. This combination delivers faster cycle times while maintaining edge quality your customers expect.

Our water cooling system manages heat dissipation efficiently during extended operation. You can run multiple shifts without performance degradation or unexpected downtime.

Technical Specifications

Industrial Applications That Drive Results

Heavy Machinery & Shipbuilding Operations

You need to process large-format plates with absolute dimensional control. Our product maintains accuracy over extended cutting paths where structural rigidity matters most.

The robust H-frame construction prevents deflection when handling thick carbon steel sections. Your fabrication teams will appreciate consistent results across full 8-meter bed lengths.

Aerospace & Precision Engineering

High-strength alloys require minimal heat-affected zones to preserve material properties. The focused fiber beam delivers clean cuts without compromising metallurgical integrity.

You'll achieve tight tolerances required for critical components. The stable optical system ensures repeatability across production batches.

Automotive & Agricultural Manufacturing

Complex production environments with dust and temperature fluctuations demand resilient equipment. Our sealed optical path and positive pressure protection maintain beam quality in challenging conditions.

Automated nesting capabilities reduce material waste significantly. You'll complete chassis components and structural frames faster than plasma or mechanical cutting methods.

Core Advantages for Your Production Floor

Unmatched Structural Stability

The welded bed undergoes T6 heat treatment and vibration aging. This eliminates internal stress, guaranteeing no deformation for over 20 years of service.

Your investment remains protected through decades of operation. The H-frame geometry provides symmetrical load distribution during high-acceleration movements.

Superior Component Selection

We integrate premium servo motors and precision rack-and-pinion drive systems. Every motion component meets industrial-grade specifications for continuous duty cycles.

The THF4 military-grade lens maintains beam quality throughout extended cutting sessions. You won't experience focal drift or power loss over time.

Energy Efficiency That Impacts Your Bottom Line

Electro-optical conversion efficiency exceeds 30%, drastically reducing energy consumption compared to CO2 technology. Lower operating costs compound over years of production.

The fiber laser source delivers consistent output without degradation. You'll maintain cutting speeds without power adjustments or recalibration.

Quality Control You Can Verify

Every machine passes rigorous testing before shipment. Laser interferometer testing calibrates X/Y axis positioning to documented specifications.

We conduct 72-hour full-load aging tests on laser sources and motion systems. This identifies potential failures before equipment reaches your facility.

Ballbar testing verifies circularity and geometric accuracy across the working envelope. You receive documentation proving machine capabilities.

Ultrasonic testing validates weld seam integrity and stress-relief effectiveness. The H-frame maintains alignment under high-speed inertial loads throughout its service life.

Cutting sample inspection includes microscopic analysis of edge roughness. We verify beam focal stability through actual production scenarios.

Complete Support From Installation to Production

Fast Deployment Timeline

Standard production completes within 14 business days. Our sufficient inventory supports urgent orders when your schedule demands it.

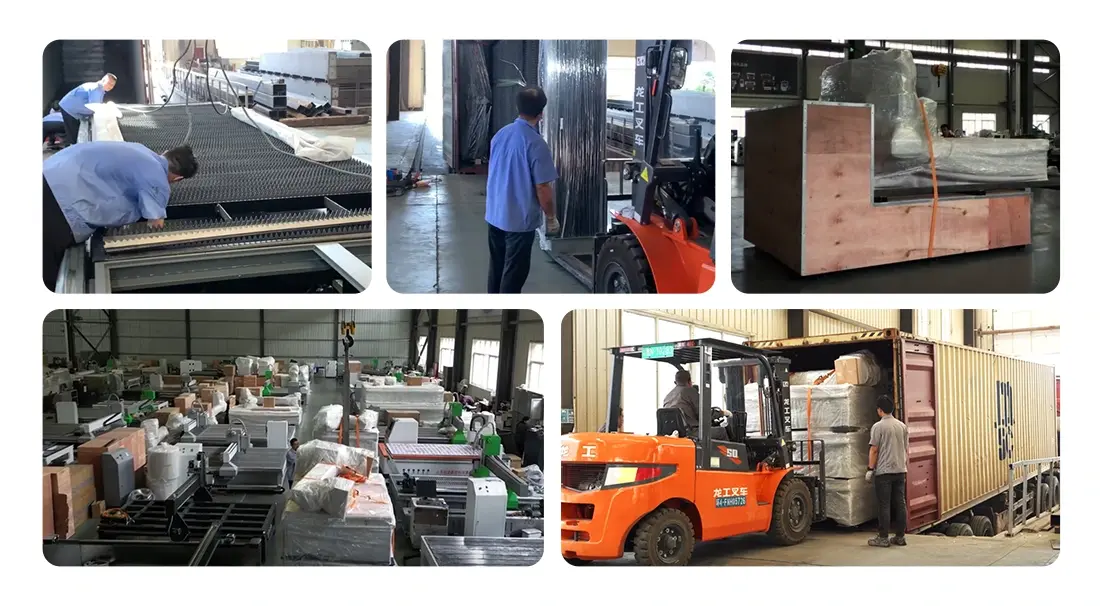

Strategic logistics partnerships ensure reliable international shipping. You'll receive equipment on schedule regardless of your global location.

Comprehensive Technical Assistance

The 450-day warranty period covers parts and technical support. Our response team addresses your questions promptly to minimize production interruptions.

We provide professional installation guidance and operator training. Your team gains confidence running the equipment from day one.

Ongoing maintenance assistance keeps your H Model Plate Fiber Laser Cutting Machine performing optimally. Remote diagnostics resolve many issues without technician visits.

Customization for Your Specific Requirements

Each generation environment presents one of a kind challenges. We back OEM and ODM arrangements based on your specialized specifications.

Custom machine structures adjust to your office format. Computer program frameworks coordinated with existing generation administration platforms.

Processing arrangements optimize for your fabric sorts and thickness ranges. We arrange assistant gas frameworks for your particular cutting requirements.

​​​​​​​

Frequently Asked Questions

What most extreme thickness can this machine cut effectively?

With 20kW-30kW laser control, you'll cut carbon steel up to 60mm and stainless steel up to 50mm. High-pressure oxygen or nitrogen help gas produces clean edges without auxiliary processing.

How does the H-frame compare to other auxiliary designs?

The H-frame gives prevalent symmetry and vibration hosing. This gets to be basic when keeping up exactness at increasing velocities over 1.2G amid fast situating moves.

What is the anticipated laser source lifespan?

Quality fiber sources are evaluated for 100,000 hours of operation. With standard generation plans, you'll accomplish 10-12 a long time of dependable benefit some time recently source replacement.

How do you ensure pillar quality in dusty environments?

The completely fixed optical way employments positive weight extraction. This anticipates defilement of defensive focal points indeed in challenging manufacture environments.

Which assistant gasses work with this system?

Oxygen empowers quick cutting of carbon steel with oxidized edges. Nitrogen produces shinning wraps up on stainless steel and aluminum. Compressed discuss offers cost-effective cutting of more slender gauges.

Can the machine handle complex settling patterns?

Advanced CNC control frameworks back robotized settling optimization. You'll maximize fabric utilization whereas keeping up fast handling speeds over blended portion clumps.

Get Started With Industrial-Grade Performance

Email us at jianghui@yuhui-laser-tech.com for detailed specifications, customization options, and competitive factory-direct pricing for the H Model Plate Fiber Laser Cutting Machine.
