Z6 Co2 Reci Laser Tube 130w – High-Performance Industrial CO2 Laser Source

The Z6 Co2 Reci Laser Tube 130w from Shandong Yuhui Laser Technology is an enterprise-grade CO2 laser source engineered for industrial precision and durability. This tube delivers a rated power of 130W with peak output reaching 150W, housed in a robust 1650mm length and 80mm diameter structure.

Equipped with THF4 military-grade optics and an advanced catalyst coating, your laser system benefits from a TEM00 Gaussian beam profile that ensures consistent power output even after one year of continuous operation. With an impressive service life 1.5 times longer than similar products—approximately 10,000 operational hours—and a remarkable 450-day warranty, you receive unmatched reliability for high-volume production environments.

What Makes the Z6 Co2 Reci Laser Tube 130w Stand Out?

When you contribute in laser hardware, soundness amid long-duration cutting is non-negotiable. The item addresses basic industry torment focuses through modern engineering.

Unlike nonexclusive tubes that endure quick control rot, this laser source highlights a specialized movable screw resonator plan. This development keeps up pillar arrangement indeed beneath high-temperature variances amid 24/7 operation.

Your preparing exactness benefits from a bar dissimilarity point of ≤1.1 mrad and a concentrated 5mm pillar breadth. The metal head yield conclusion replaces conventional glass components, essentially lessening splitting dangers whereas improving warm scattering efficiency.

The inside catalyst coating recovers CO2 gas amid operation. This anticipates gas depletion—a common disappointment mode in lower-quality tubes—extending your equipment's beneficial life expectancy whereas keeping up reliable cutting quality.

Core Applications Across Industrial Sectors

Industrial Die-board Processing

You'll find the product excels when cutting 15-20mm plywood for packaging dies. The stable power output ensures consistent verticality and narrow kerf widths that meet strict manufacturing tolerances.

Heavy-Duty Acrylic Fabrication

Working with thick acrylic sheets demands reliable performance. This tube enables high-speed cutting of 20mm+ acrylic with a flame-polished edge finish that eliminates post-processing requirements, saving you valuable production time.

Textile and Leather Manufacturing

In environments where dust and humidity fluctuate, stable discharge becomes critical. Your multi-head laser machines can process denim, automotive upholstery, and synthetic leathers without power drops that cause incomplete cuts and material waste.

Technical Specifications

Why Choose Our Z6 Co2 Reci Laser Tube 130w?

Superior Beam Quality

You achieve exceptional processing accuracy through the perfect Gaussian beam profile. The fine light spot produces clean cuts with minimal heat-affected zones, eliminating burrs and material deformation.

Extended Service Life

Your investment is protected through advanced engineering. The service life extends 1.5 times beyond comparable products, with stable performance maintaining consistent output throughout the operational period.

Versatile Material Compatibility

Whether you're working with acrylic, wood, leather, or fabric, this tube adapts to your processing needs. Non-contact processing preserves material integrity without mechanical stress.

Energy Efficiency

High photoelectric conversion efficiency reduces your operational costs. The tube consumes less power while delivering stable output, supporting environmentally conscious manufacturing practices.

Compact Integration

The streamlined structure simplifies installation across various laser machine configurations. You can upgrade existing equipment or integrate into new systems with minimal adaptation required.

Quality Assurance You Can Trust

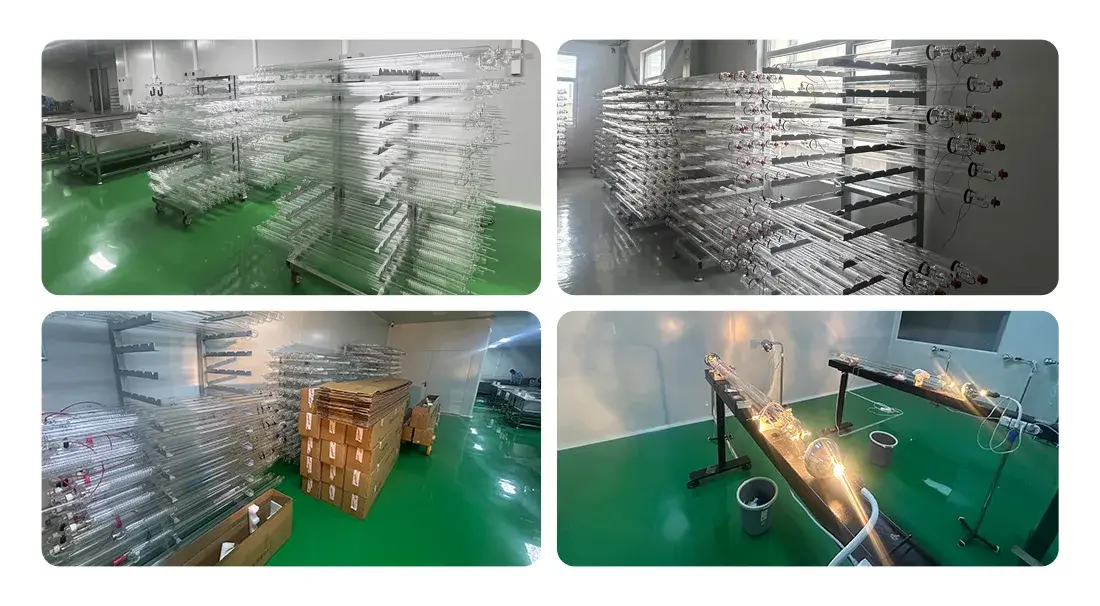

Every Z6 Co2 Reci Laser Tube 130w undergoes comprehensive testing before reaching your facility. Our CE and ISO certified manufacturing system implements strict quality control procedures.

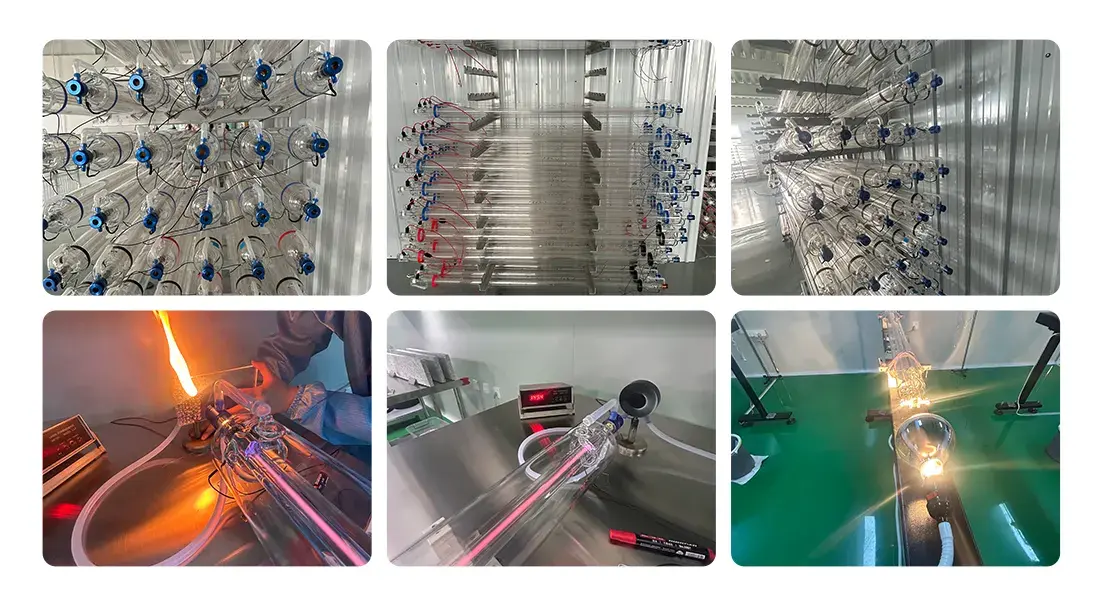

Each tube completes a 24-hour maturing test to confirm control solidness without release vacillations. Bar spot examination affirms the TEM00 mode through acrylic burn tests at different distances.

High-voltage separator testing guarantees secure operation at 28-32kV start voltages. Vacuum maintenance testing approves the judgment of metal-to-glass seals, anticipating gas spillage that would compromise performance.

Your tube arrives with confirmed control margin—the evaluated 130W comfortably comes to 150W top yield. This security buffer gives adaptability in your control supply settings and operational prerequisites.

Frequently Asked Questions

Q: What power supply works best with the product?

A: We recommend the Reci DY20 power supply or equivalent 150W-rated units. Proper power matching ensures correct ignition and operating current for optimal performance.

Q: How do I maximize the operational lifespan of my tube?

A: Maintain cooling water temperature between 15-25°C using an industrial chiller like the CW-5200. Keep output lenses clean from dust accumulation and avoid running at 100% current for extended periods.

Q: What does a purple discharge indicate?

A: Normal operation produces a pinkish-white glow. Deep purple or blue discharge suggests gas contamination or air leakage requiring tube replacement.

Q: Is this tube compatible with my existing laser equipment?

A: Yes, provided your machine frame accommodates the 1650mm length and your power supply meets 130-150W requirements. The standard mounting interface ensures broad compatibility.

Q: What causes distorted beam spots?

A: Check cooling water flow first—bubbles disrupt heat dissipation. Verify mounting brackets aren't over-tightened, as excessive pressure can cause slight glass tube deformation affecting beam quality.

Q: Can I store spare tubes long-term?

A: Absolutely. With proper storage conditions, the product maintains performance characteristics for up to 5 years without power decay.

Ready to Enhance Your Laser Processing Capabilities?

Contact our technical team today for customized solutions and expert guidance on the Z6 Co2 Reci Laser Tube 130w. Email us at jianghui@yuhui-laser-tech.com for pricing, technical specifications, and delivery options.
