FLT4 600W laser tube

FLT4 600W Laser Tube: Industrial-Grade CO2 Laser Solution for Precision Cutting

The FLT4 600W laser tube from Shandong Yuhui Laser Technology delivers enterprise-grade performance with a stable 600W output and peak power reaching 620W. Engineered with military-grade THF4 optical lenses and advanced catalytic coating technology, this industrial CO2 laser source achieves exceptional beam quality exceeding 95% TEM00 mode purity.

With an optimum operating current of 30-35mA and an impressive service life 1.5 times longer than competing products, your production facility gains reliable cutting power for materials up to 25mm thick. Our CE and ISO-certified manufacturing ensures consistent performance even after 10,000 operating hours, backed by an industry-leading 450-day warranty and power output that remains stable after one year of continuous use.

What Makes the FLT4 600W Laser Tube Your Ideal Industrial Solution?

Engineered for Heavy-Duty Applications

You require cutting control that doesn't compromise on exactness. This item bridges the hole between conventional glass tubes and high-cost fiber lasers, giving you industrial-grade capability at a competitive cost point.

The 1650mm length plan optimizes control thickness whereas keeping up warm solidness. Whether you're preparing thick plywood or complex acrylic components, you'll encounter steady comes about all through expanded generation runs.

Superior Beam Quality for Precision Work

Your wrapped up items request clean edges and precise cuts. The fine light spot delivered by our interesting optical focal point framework conveys tall preparing exactness with negligible warm distortion.

The 10.6μm wavelength is particularly optimized for non-metallic materials. You'll see prevalent retention rates in natural materials like wood, coming about in less charring and cleaner cuts compared to elective laser advances.

Technical Specifications

Key Advantages That Benefit Your Production

Extended Service Life & Reliability

Your operational costs decrease when equipment lasts longer. This tube features a service life 1.5 times longer than similar products, with the ability to maintain storage for up to 5 years without power decay.

Advanced internal catalyst technology reduces gas dissociation. You'll achieve up to 10,000 operational hours with consistent power output, minimizing replacement frequency and production downtime.

Stable Performance Under Demanding Conditions

Manufacturing environments aren't always ideal. The integrated water-cooling jacket with high-flow heat dissipation prevents mode hopping during extended operations.

Your power output remains within ±3% fluctuation even during 48-hour continuous discharge cycles. This thermal stability ensures consistent cutting quality regardless of production duration.

Wide Material Adaptability

You work with diverse materials daily. The FLT4 600W laser tube excels across acrylic, wood, leather, cloth, and other non-metallic materials with equal proficiency.

When paired with oxygen-assist systems, you can even process thin stainless steel up to 2mm and carbon steel. The sealed-off design protects the internal optical path in high-humidity or dust-heavy factory conditions.

Cost-Effective Industrial Solution

Budget constraints shouldn't limit your capabilities. As a direct manufacturer, we eliminate middlemen costs while maintaining rigorous quality standards.

You benefit from high photoelectric conversion efficiency that reduces energy consumption. Lower purchase and maintenance costs combine with superior performance to deliver exceptional value for your investment.

Industrial Applications Where This Tube Excels

Die-Board Processing Excellence

The packaging industry relies on precision. This tube is the standard for cutting 18-25mm plywood die-boards, providing perfectly vertical, soot-free edges that meet strict quality requirements.

Your die-board production gains speed without sacrificing accuracy. The high power density pierces dense materials efficiently while maintaining narrow kerf widths.

Heavy-Duty Acrylic Fabrication

Thick acrylic requires substantial power. You'll cut 30mm+ thick acrylic signage and structural components with edge flame-polishing quality directly from the laser cut.

This capability eliminates secondary finishing processes. Your production workflow becomes more streamlined, reducing handling time and labor costs.

Hybrid Material Processing

Versatility matters in modern manufacturing. The tube's 600W power output handles both traditional non-metallic materials and thin metal sheets with appropriate gas-assist configurations.

You gain operational flexibility without investing in multiple laser systems. One machine addresses diverse production requirements across different material categories.

Quality Assurance & Manufacturing Excellence

Rigorous Testing Protocol

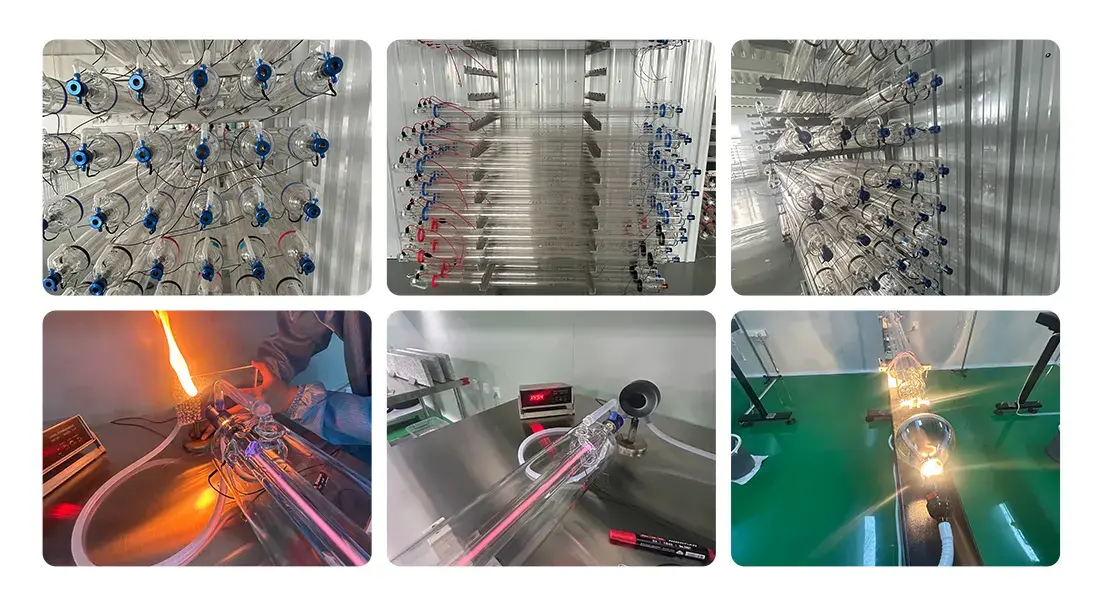

Every tube undergoes comprehensive inspection before shipment. Our 48-hour continuous discharge test verifies power stability within strict tolerances.

You receive equipment that's been validated through beam profile analysis using PMMA mode-burn tests. Electronic beam profilers confirm proper Gaussian distribution for optimal cutting performance.

Certified Safety Standards

Your facility's safety is non-negotiable. High-voltage insulation checks test for leakage current and arc resistance at 30kV+ levels, ensuring operator protection.

Helium mass spectrometer leak detection guarantees vacuum integrity. The glass-to-metal seals maintain proper gas mixture ratios throughout the tube's operational life.

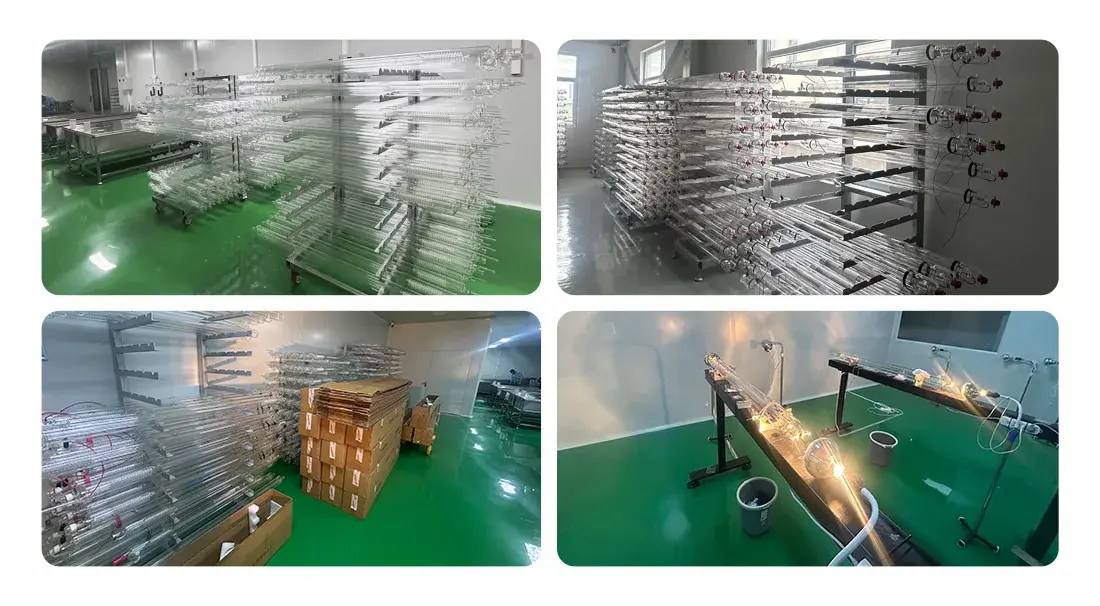

Factory-Direct Quality Control

We maintain strict quality control throughout production. Our CE and ISO-certified manufacturing system ensures international quality standards at every stage.

From spectroscopic gas mixture analysis to final packaging, your tube meets rigorous performance benchmarks. This attention to detail translates into reliable operation in your facility.

Installation & Operational Requirements

Cooling System Specifications

Proper thermal management maximizes tube life. You'll need a high-capacity industrial chiller with at least 5000W cooling capacity to maintain stable performance.

Maintaining water temperature between 20-25°C prevents mode instability. This cooling requirement is critical for preserving the power consistency you depend on during production.

Beam Alignment Considerations

Exactness arrangement isn't discretionary at this control level. The tall control thickness implies indeed minor misalignment can cause warm harm to reflection mirrors or your laser head nozzle.

Your establishment group ought to take after strict arrangement conventions. Appropriate setup guarantees you realize the full execution potential of your investment.

Frequently Asked Questions

Q: How long will this tube final in my generation environment?

A: Beneath ideal cooling conditions (20-25°C) and clean control supply, you can anticipate around 10,000 operational hours. This interprets to a few a long time of dependable benefit in normal mechanical settings.

Q: Why select this over a fiber laser for wood cutting applications?

A: The 10.6μm wavelength is predominant for natural materials. You'll involvement way better assimilation, less charring, and cleaner edges compared to fiber lasers when handling wood products.

Q: What happens if control yield debases over time?

A: Our progressed catalyst innovation anticipates commonplace debasement designs. Control yield remains steady indeed after one year of utilize, and you're ensured by our industry-leading 450-day warranty.

Q: Can this tube be refilled or refurbished?

A: The FLT4 is a sealed-off CO2 laser outlined as a long-life consumable. Whereas specialized restoration is hypothetically conceivable in specialized offices, the tube's amplified life expectancy regularly makes substitution more practical.

Q: What materials can I handle with this control level?

A: You can proficiently cut acrylic, wood, calfskin, cloth, and other non-metals. With oxygen-assist frameworks, lean stainless steel (up to 2mm) and carbon steel preparing is moreover achievable.

Q: How does the compact structure advantage my facility?

A: The 1650mm length and standardized emanation stature of 100mm make establishment direct. You can effectively coordinated this tube into different laser machine arrangements without broad alterations.

Why Choose Shandong Yuhui Laser Technology?

Comprehensive Support Throughout Ownership

Your success extends beyond the purchase. We provide professional installation guidance, operation training, and maintenance assistance through our experienced technical team.

Our fast-response support ensures worry-free equipment operation. You're never left troubleshooting issues alone—expert help is always available when you need it.

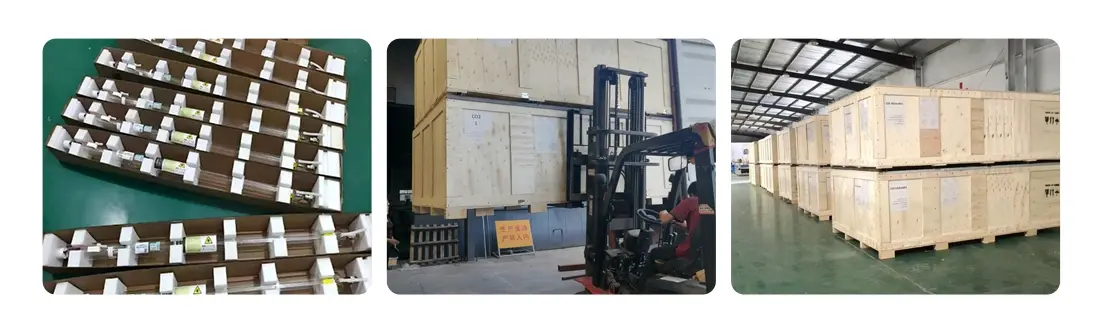

Sufficient Inventory & Fast Delivery

Production schedules can't wait for extended lead times. We maintain substantial inventory to support urgent orders and ensure continuity in your operations.

Standard production lead time remains within 14 business days. Our efficient production management and strategic logistics partnerships deliver reliable international shipping to your location.

Professional Customization Capabilities

Your application may have unique requirements. We support OEM and ODM production based on your specific drawings and technical specifications.

From customized machine structures to specialized processing solutions, we adapt our technology to your production environment. This flexibility ensures optimal performance for your specific use case.

Ready to Enhance Your Production Capabilities?

Contact our technical team today to discuss your specific application requirements for the FLT4 600W laser tube.

Reach us at: jianghui@yuhui-laser-tech.com
