FLT2 300W Laser Tube: Industrial-Grade CO2 Laser Source for Precision Cutting

The FLT2 300W laser tube from Shandong Yuhui Laser Technology represents a breakthrough in industrial CO2 laser technology. Engineered with military-grade THF4 optical lenses, this tube delivers a maximum output of 330W with exceptional beam stability.

Your production demands require reliability. Our product achieves 1.5 times longer service life than competing products, maintaining consistent power output even after one year of continuous operation. With a remarkable 5-year storage capability without decay and an industry-leading 450-day warranty, you receive unmatched value protection.

The precision-machined 1650mm alloy structure integrates advanced heat dissipation technology, ensuring stable performance during extended cutting operations. Operating at an optimal current range of 30-35mA, this laser tube processes everything from delicate engravings to heavy-duty batch cutting applications.

Why Choose FLT2 300W Laser Tube?

Exceptional Beam Quality & Processing Precision

You'll take note the distinction instantly when you see the fine spot quality. The item produces a near-perfect TEM00 mode pillar with breadth ≤7mm at 10.6µm wavelength.

This deciphers specifically to your foot line. More tightly bar control implies cleaner edges, diminished fabric squander, and speedier handling speeds for your generation floor.

Extended Service Life & Power Stability

Your hardware speculation merits assurance. Our exclusive nano-catalyst coating innovation guarantees control steadiness inside ±5% resistance all through the tube's operational life.

The specialized German-sourced catalyst empowers operational hours surpassing 10,000 hours. You won't involvement the baffling control rot common in standard tubes after fair 2,000 hours of use.

Versatile Fabric Preparing Capability

Whether you're cutting 25mm acrylic sheets or etching complicated designs on calfskin, this tube adjusts to your needs. It exceeds expectations over non-metallic materials counting wood, cloth, paper, and plastics.

When combined with oxygen-assist frameworks, you can indeed cut 1.5mm-2.5mm stainless steel plates. This flexibility dispenses with the require for numerous laser sources in cross breed generation situations.

Technical Specifications

Key Performance Advantages

Superior Heat Dissipation Design

The adjustable alloy structure incorporates a three-layer cooling architecture. This engineering prevents thermal buildup during high-frequency pulsed operations.

Your production won't be interrupted by overheating shutdowns. The enhanced cooling system supports continuous 12-hour operation cycles without performance degradation.

High Photoelectric Conversion Efficiency

Energy costs impact your profit margins. This tube delivers exceptional photoelectric conversion rates, reducing your operational power consumption by up to 15% compared to older generation tubes.

Lower energy requirements mean reduced cooling demands. You'll save on both electricity and chiller maintenance costs throughout the tube's lifetime.

Cost-Effective Manufacturing Solution

Direct factory pricing eliminates middleman markups. You receive industrial-grade performance at a price point typically reserved for mid-tier equipment.

The combination of extended lifespan, low maintenance requirements, and energy efficiency provides industry-leading total cost of ownership. Your ROI timeline shortens significantly compared to competing laser sources.

Real-World Application Scenarios

Industrial Die-Board Manufacturing

The packaging industry demands precision. When cutting 18mm-22mm high-density plywood for folding carton dies, you need vertical cut accuracy within ±0.1mm.

Our product provides the peak power density required for these demanding applications. The consistent beam quality ensures every cut maintains perpendicularity from entry to exit point.

Large-Format Acrylic Processing

Processing thick acrylic sheets presents unique challenges. Standard tubes struggle with 25mm+ thickness, producing frosted edges that require manual polishing.

This tube delivers flame-polished edges automatically. The high power density creates a self-annealing effect during cutting, eliminating secondary finishing operations and reducing your labor costs.

Hybrid Metal/Non-Metal Production

Modern fabrication shops handle diverse material portfolios. Switching between acrylic signage and thin metal brackets requires equipment versatility.

When equipped with proper assist gas systems, you can seamlessly transition between materials. Cut 2mm carbon steel plate in the morning and engrave detailed artwork on wood panels in the afternoon.

Quality Assurance & Manufacturing Standards

Rigorous Multi-Stage Testing

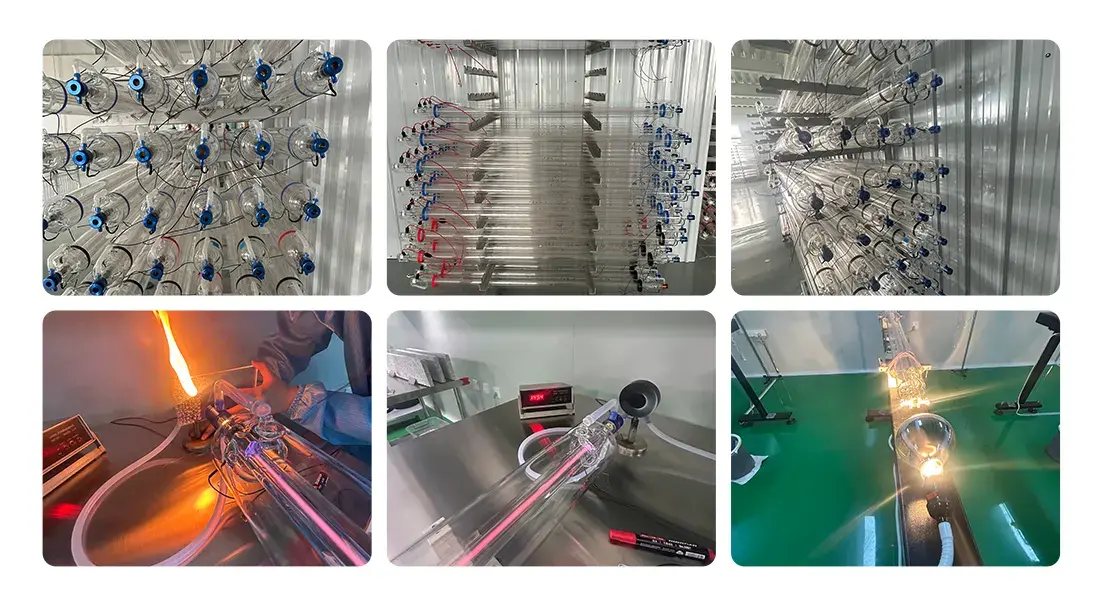

Every unit undergoes comprehensive quality validation before shipment. Our 12-hour continuous burn-in test identifies potential performance issues that might appear weeks into your production schedule.

Beam spot analysis confirms proper energy distribution. We use thermal imaging and acrylic ablation testing to verify circular Gaussian profiles meeting TEM00 specifications.

International Certification Compliance

Your business operates in regulated environments. Our CE and ISO certified manufacturing systems ensure compliance with international safety and quality standards.

High-voltage arcing tests verify insulation integrity up to 40kV surges. This protects your operators and prevents catastrophic equipment failures on your production floor.

Hermetic Seal Integrity

The internal gas mixture determines performance longevity. We employ helium mass spectrometry to detect microscopic leaks that would cause premature power decay.

High-borosilicate glass construction with reinforced metal-to-glass seals withstands thermal expansion cycles. Your tube maintains vacuum integrity throughout its operational lifetime.

Installation & Operational Guidelines

Critical Mounting Requirements

Horizontal installation is mandatory. Position the water outlet at the highest point to prevent air bubble accumulation that causes localized overheating.

Ensure proper clearance around the emission height zone (70-109mm). Adequate ventilation prevents heat buildup in the mounting enclosure.

Cooling System Specifications

Match your chiller capacity to tube requirements. The FLT2 300W laser tube requires industrial cooling systems rated at minimum 5000W capacity (CW-6000 or equivalent).

Maintain coolant temperature between 18°C-24°C. Temperature fluctuations outside this range accelerate gas dissociation and reduce tube lifespan significantly.

Power Supply Compatibility

Never endeavor operation with undersized control supplies. This tube requires committed 300W high-voltage supplies (such as DY30 models) conveying legitimate start and working voltages.

Mismatched control supplies cause inadequate start, unsteady arcing, and untimely cathode disintegration. Continuously confirm electrical compatibility some time recently installation.

Frequently Asked Questions

Q: What upkeep plan ought to I follow?

A: Review and clean the yield coupler focal point each 200 working hours. Check cooling water stream week by week and supplant coolant each 3 months to avoid green growth buildup influencing warm transfer.

Q: Can this tube cut intelligent metals like copper or brass?

A: No. CO2 laser wavelengths (10.6µm) reflect off yellow metals. Endeavoring to cut copper or brass causes perilous back-reflection that can harm the yield window permanently.

Q: Why is my cutting speed slower than specified?

A: Confirm your laser control supply yield with a control meter. Check focal point cleanliness and central separate precision. Guarantee your help gas weight meets material-specific prerequisites (regularly 0.8-1.2 bar for acrylic).

Q: How do I know when the tube needs replacement?

A: Screen for control yield dropping underneath 80% of evaluated capacity at ideal current settings. Obvious arcing interior the tube or failure to keep up steady start shows end-of-life conditions.

Q: Is the tube consistent with my existing laser cutter?

A: Check three basic measurements: add up to length (1650mm), emanation stature (70-109mm), and mounting bracket dividing. Confirm your control supply yields 30-35mA at suitable voltage levels for 300W operation.

Q: What causes fast control corruption after beginning installation?

A: Most untimely disappointments result from lacking cooling or sullied water frameworks. Confirm coolant resistivity remains over 200kΩ and stream rate surpasses 4L/min least all through the tube length.

Why Partner with Shandong Yuhui Laser Technology?

Factory-Direct Advantages

As the original manufacturer, we control every production stage. You eliminate distributor markups while gaining direct access to our engineering team for technical support.

Our 14-day standard production lead time ensures rapid deployment. Sufficient inventory supports urgent orders when your production schedule demands immediate solutions.

Comprehensive Service Commitment

Your investment includes 450 days of warranty coverage backed by responsive technical support. We provide installation guidance, operator training, and ongoing maintenance assistance.

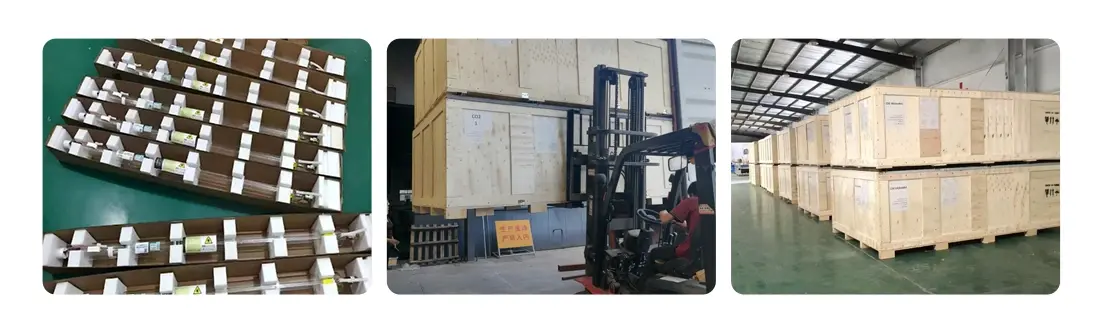

Our global logistics partnerships ensure reliable delivery to your location. Strategic relationships with international shipping providers guarantee your equipment arrives on schedule and undamaged.

Customization Capabilities

Standard specifications don't fit every application. Our OEM/ODM services adapt tube configurations to your specific requirements including custom mounting brackets, specialized cooling interfaces, and integrated power monitoring systems.

Contact Us Today

Email: jianghui@yuhui-laser-tech.com

Let us help you achieve higher productivity, better cut quality, and lower operational costs with the FLT2 300W laser tube.
