V4 Laser Tube - Industrial-Grade CO2 Laser Source for Precision Cutting & Engraving

Shandong Yuhui Laser Technology Co., Ltd. presents the enterprise-class v4 laser tube, a 100W CO2 glass laser source engineered for superior accuracy and extended operational life. With a maximum output of 130W and a tube length of 1450mm, this fourth-generation laser tube delivers stable power performance with only ±5% variance during continuous use.

Equipped with military-grade THF4 optical lenses and advanced heat dissipation architecture, it maintains consistent beam quality even after one year of intensive operation. The product offers 1.5 times the service life of standard alternatives, supports up to 5 years of storage without power decay, and is backed by our industry-leading 450-day warranty.

Why Choose Our V4 Laser Tube?

Exceptional Beam Quality & Processing Precision

Your production demands perfection. Our product maintains a TEM00 fundamental mode throughout its lifespan, producing a concentrated 6-7mm spot diameter that ensures razor-sharp edges on acrylic, wood, leather, and fabric.

The proprietary nano-coated internal mirrors prevent beam mode degradation. You get the same cutting depth and engraving clarity on day one as you do after 10,000 hours of operation.

Extended Service Life & Reliable Performance

Standard laser tubes lose power within months. Not ours.

The product incorporates advanced catalyst coating technology on the discharge tube interior. This innovation prevents CO2 gas dissociation, maintaining molecular stability for over 10,000 working hours under optimal cooling conditions.

Metal-to-glass sealing technology eliminates helium leakage risks common in epoxy-sealed alternatives. Your tube performs consistently across 24/7 production cycles without unexpected failures.

Superior Heat Management System

Overheating is the enemy of laser precision. Our adjustable alloy structure features an optimized cooling jacket design that maintains discharge stability even during extended high-power operations.

The water outlet positioning prevents air bubble entrapment. This eliminates localized overheating and thermal lensing effects that compromise cut quality in competing products.

Optimized for High-Intensity Applications

Whether you're engraving intricate patterns or cutting thick materials, this tube delivers. Operating at 20-25mA optimal current with a maximum rating of 30mA, it balances power output with energy efficiency.

The ignition current of just 6-9mA ensures reliable startup. Peak power reaches 130W when you need that extra cutting capability for dense substrates.

Technical Specifications

Material Compatibility & Applications

Wide Material Adaptability

Your workflow includes diverse substrates. Our v4 laser tube handles them all with non-contact processing that prevents material deformation and eliminates burrs.

Ideal for:

• Acrylic sheets and fabricated plastics
• Wood veneer and engineered lumber
• Genuine and synthetic leather
• Textile and fabric materials
• Paper and cardboard products
• Rubber and foam composites

The high photoelectric conversion efficiency reduces energy consumption. You save on operational costs while maintaining production throughput.

Industry Applications

Advertising signage manufacturers rely on our tubes for intricate lettering and channel letter cutting. Furniture makers appreciate the clean edges on decorative wood panels.

Fashion workshops use them for precise fabric cutting without fraying. Packaging companies depend on the consistent performance for high-volume die-cutting operations.

Key Performance Advantages

Stable Power Output: Unlike tubes that require frequent recalibration, ours maintains consistent wattage throughout the warranty period. You eliminate production downtime caused by power fluctuations.

Low Maintenance Requirements: The sealed design requires only basic care—clean output lenses with anhydrous ethanol and maintain deionized water in your chiller. No complex servicing procedures.

Compact Integration: The 80mm diameter and standardized mounting interface ensure compatibility with most CO2 laser cutting and engraving machines. Installation is straightforward without machine modifications.

Cost-Effective Ownership: Direct manufacturer pricing eliminates middleman markups. Combined with the extended lifespan and low failure rate, your total cost of ownership drops significantly compared to frequent tube replacements.

Quality Assurance & Support

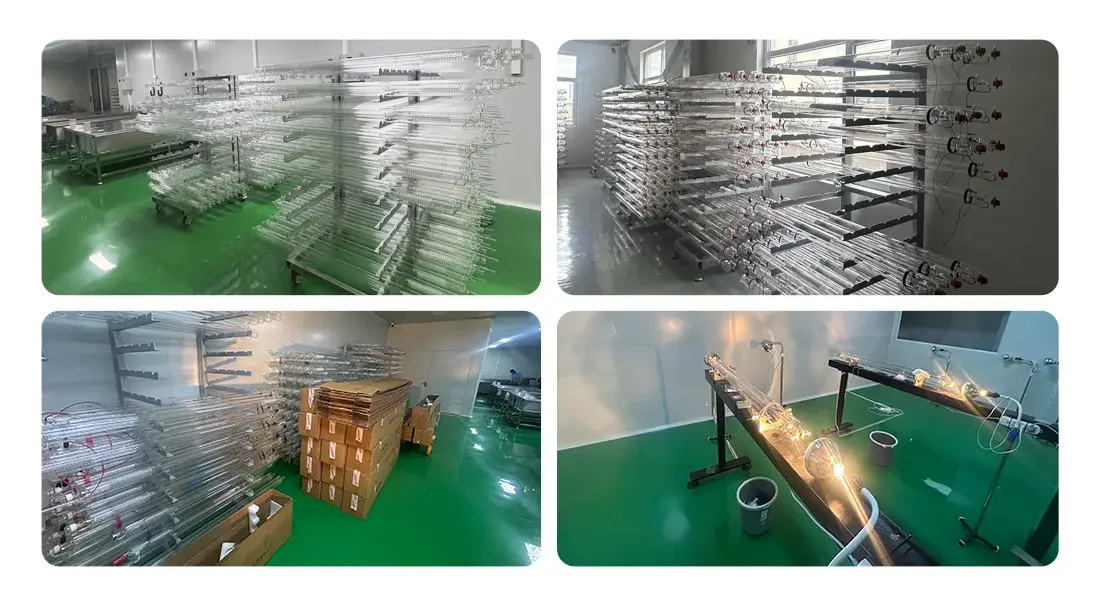

Certified Manufacturing Standards

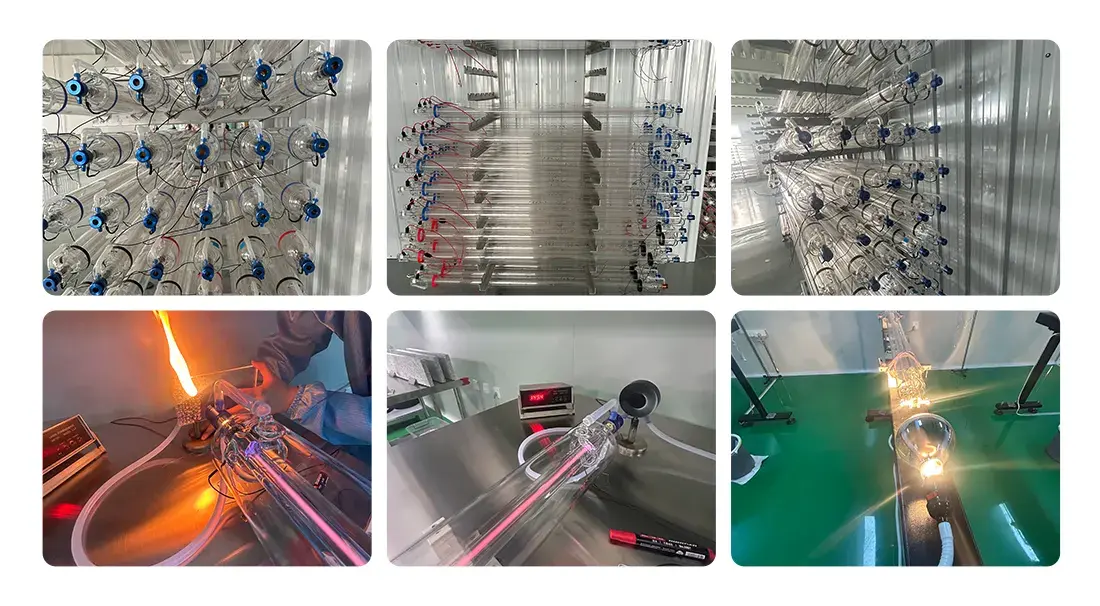

Each tube experiences thorough testing some time recently shipment. Our CE and ISO-certified generation office keeps up strict quality control conventions over all fabricating stages.

We give establishment direction, operation preparing, and support help. Your group gets up to speed rapidly with proficient back from our specialized specialists.

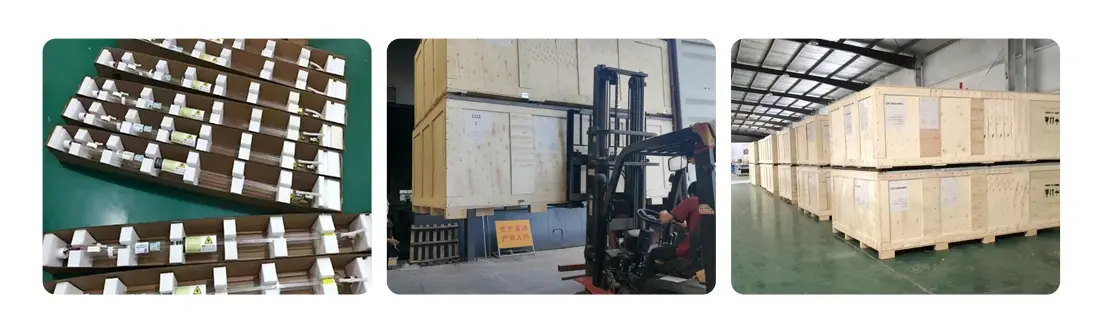

Fast Delivery & Global Logistics

Sufficient stock bolsters critical orders. Standard generation lead time is inside 14 commerce days for custom requirements.

Our key associations with proficient coordinations companies guarantee steady universal shipping. You get your hardware on plan, wherever you operate.

Frequently Asked Questions

Q1: What is the real life expectancy I can anticipate beneath ordinary mechanical use?

A: With legitimate cooling kept up between 18-24°C and working current underneath 28mA, you'll accomplish 10,000+ hours of benefit life. Numerous clients report surpassing this benchmark.

Q2: Can I utilize this tube with my existing 80W control supply?

A: No. The v4 requires a committed 100W-130W high-voltage control supply coordinated to its determinations. Utilizing insufficient control sources causes start disappointments and diminishes lifespan.

Q3: How do I recognize if the tube is losing gas pressure?

A: Observe for release color changes. A move from shinning whitish-pink to profound purple or blue demonstrates gas consumption. At the same time, you'll take note decreased cutting profundity and etching intensity.

Q4: Why does the v4 outflank prior eras on thick acrylic?

A: Made strides bar focusability makes a littler central spot estimate. This concentrates vitality thickness, creating fire-polished edges and empowering cleaner cuts through materials up to 25mm thick.

Q5: What's the rectify establishment orientation?

A: Continuously position the water outlet at the most noteworthy point. This anticipates discuss bubbles from collecting in the cooling coat, which causes overheating and potential tube cracking.

Q6: Does this tube require uncommon support procedures?

A: Past keeping optics clean and keeping up chiller water quality, the v4 is maintenance-free. The fixed development disposes of gas refilling necessities common in more seasoned tube plans.

Get Your V4 Laser Tube Today

Contact us at jianghui@yuhui-laser-tech.com for technical specifications, volume pricing, or customization options for the v4 laser tube. Experience factory-direct quality with professional support.
