v6 130W laser tube

V6 130W Laser Tube – Industrial-Grade CO2 Laser Source for Precision Cutting & Engraving

Shandong Yuhui Laser Technology brings you the v6 130W laser tube, a premium CO2 glass laser source built for demanding industrial applications. Our enterprise-grade solution features a catalytic coating that extends operational life beyond 10,000 hours—1.5 times longer than standard alternatives.

With CE and ISO certified manufacturing, each tube is equipped with THF4 military-grade optical components ensuring exceptional beam quality and minimal power degradation. The tube delivers a stable output range of 130W-150W with less than ±5% fluctuation, maintaining consistent performance even after one year of continuous use.

Backed by our 450-day warranty, efficient 14-day production lead time, and factory-direct pricing, you get professional-grade reliability without compromise.

What Makes This Laser Tube Stand Out?

Exceptional Beam Quality & Processing Accuracy

Your production results depend on beam stability. This CO2 laser source utilizes TEM00 fundamental mode with a concentrated circular spot diameter of 6-7mm at the beam waist. The low divergence angle (<2.0 mrad) ensures you achieve clean, precise cuts on materials up to 25mm thick acrylic with flame-polished edges.

High-borosilicate glass construction combined with specialized metal-to-glass sealing technology prevents gas leakage. You'll experience consistent power delivery throughout your production shifts.

Extended Operational Lifespan

Downtime costs you money. That's why we've engineered this tube with a sophisticated catalytic coating on the discharge tube that facilitates CO2 regeneration. When operated at the optimal current range of 26-28mA, you can expect over 10,000 hours of reliable service.

The advanced gas mixture ratio and high-refraction optical components work together to prevent the common "soft-beam" effect. Your cutting efficiency remains strong even when processing thick materials during extended production runs.

Thermal Stability for Continuous Operation

Multi-shift operations demand equipment that won't falter under pressure. The adjustable alloy structure features an excellent heat dissipation design that maintains beam focus even after 12+ hours of continuous work in high-humidity environments.

The high-voltage insulation system prevents arcing. You can run high-volume production with confidence, knowing your equipment will maintain performance throughout demanding schedules.

Technical Specifications

Diverse Industrial Applications

Industrial Acrylic Fabrication

You need clean edges without charring. This laser source is the industry standard for cutting 20-25mm thick acrylic sheets at high speed. The concentrated beam energy produces flame-polished edges that eliminate secondary finishing processes, reducing your production time and labor costs.

Die-Board Manufacturing for Packaging

Packaging operations require vertical precision. The high energy density provided by the product cuts through 15-18mm plywood die-boards with the accuracy needed for steel rule insertion. Your die-boards meet exact specifications every time.

High-Volume Textile Processing

Garment factories running multiple shifts benefit from exceptional thermal stability. You can process synthetic fabrics and perform denim fading operations continuously without worrying about beam drift or focus changes. The tube maintains performance integrity in challenging production environments.

Wood & Leather Crafting

Artisan workshops and industrial manufacturers alike achieve detailed engraving on wood, leather, and cloth. The fine spot control allows you to create intricate patterns while the stable power output ensures consistency across large production batches.

Quality Assurance Process

Rigorous Multi-Stage Testing

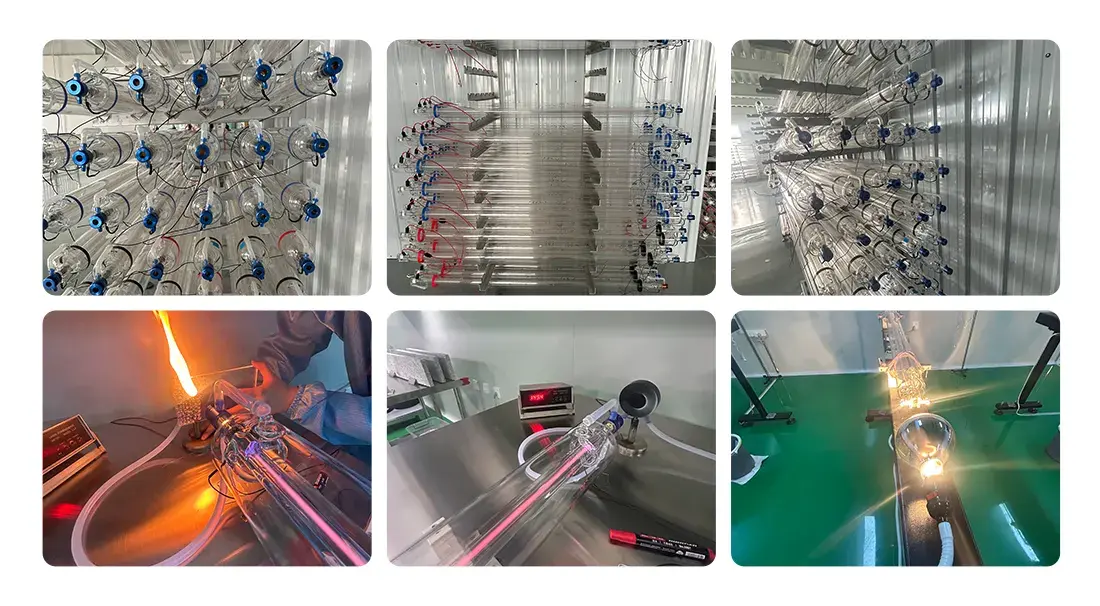

Every unit undergoes comprehensive quality verification before reaching you. Our Power Stability Testing runs each v6 130W laser tube at full capacity for 24-48 hours, monitoring output decay to ensure it meets our strict standards.

Spot Mode Inspection uses thermal sensitive paper and acrylic test blocks. We verify perfect TEM00 distribution so you receive a tube with optimal beam characteristics. High-Voltage Discharge Tests confirm the integrity of the water-cooling jacket and electrical insulation systems.

Certified Performance Documentation

You receive complete traceability with every purchase. Each tube carries a unique serial number and detailed test report documenting its specific peak power and trigger voltage. Spectrum Analysis of the CO2-N2-He gas mixture verifies purity levels that ensure long-term performance.

Our CE and ISO certified manufacturing system maintains international quality standards throughout production. Strict inspection procedures guarantee you receive equipment that performs as specified.

Installation & Operating Recommendations

Cooling System Requirements

Proper thermal management extends tube life significantly. We recommend using an industrial water chiller with at least 1500W cooling capacity, such as the CW-5200 model. Maintain water temperature between 18°C and 25°C to prevent thermal stress that can degrade performance.

Current Regulation for Longevity

Operating within the optimal current range of 26-28mA maximizes your tube lifespan. While the maximum current reaches 32mA, sustained operation at lower levels preserves the gas mixture and internal components. You'll achieve the full 10,000-hour service life when following recommended parameters.

Material Compatibility

This CO2 laser source excels with non-metallic materials including acrylic, wood, leather, cloth, paper, and certain plastics. The wide material adaptability gives you flexibility to diversify your production offerings without equipment changes.

Why Choose Yuhui Laser Technology?

Factory-Direct Advantages

As the producer, we dispense with brokers to bring you cost-effective arrangements. You get high-performance gear at competitive estimating that makes strides your return on venture. Our present day office keeps up adequate stock to bolster quick conveyance and critical orders.

Comprehensive Bolster Services

Your victory drives our commitment to benefit fabulousness. Our 450-day guarantee period surpasses industry guidelines, giving you amplified security. Proficient specialized groups give establishment direction, operation preparing, and upkeep help all through your equipment's lifecycle.

Fast reaction times guarantee worry-free operation. When you have questions or require back, our experienced professionals convey arrangements that keep your generation running smoothly.

Customization Capabilities

Your operation may have one of a kind prerequisites. We back OEM and ODM generation based on your drawings and specialized determinations. Whether you require customized machine structures, specialized capacities, or custom fitted computer program frameworks, our designing group conveys arrangements coordinated to your particular needs.

Frequently Asked Questions

Q: How does bar quality compare to standard laser tubes?

The V6 arrangement utilizes higher-grade catalysts and resonator mirrors. This comes about in a littler M² calculate and more steady TEM00 mode, deciphering to smaller kerf width and cleaner cuts for your projects.

Q: Can this high-power tube be utilized for point by point etching work?

Absolutely. In spite of its 130W control capacity, the fabulous pillar mode permits high-resolution etching on wood and glass. You essentially tweak the control successfully to accomplish the detail level your extend requires.

Q: What is the anticipated life expectancy in requesting generation environments?

With appropriate cooling and current direction underneath 28-30mA, you can anticipate 10,000 hours of operational life. This expanded life expectancy decreases your substitution costs and generation interruptions.

Q: What causes the release color to alter from purple to white or blue?

Color changes show gas defilement or consumption, regularly from spills or overheating. The item highlights specialized seals particularly planned to anticipate this disappointment mode, securing your investment.

Q: How rapidly can you fulfill orders?

Our standard generation lead time is inside 14 trade days. We keep up adequate stock to back pressing orders, and our vital coordinations organizations guarantee steady universal conveyance to your area.

Get Your High-Performance Laser Tube Today

Ready to upgrade your laser cutting and engraving capabilities with v6 130W laser tube? Email us at jianghui@yuhui-laser-tech.com to discuss your specific application requirements.
