Z4 100W Laser Tube – Enterprise-Grade CO2 Laser Solution

The z4 100W laser tube from Shandong Yuhui Laser Technology delivers enterprise-level performance with proven longevity.

Engineered with an adjustable alloy structure and superior heat dissipation design, this product maintains consistent power output even after one year of continuous operation. With a maximum power of 130W and optimal operating current of 20-25mA, it offers 1.5 times longer service life than comparable products. Your investment is protected by our industry-leading 450-day warranty, CE and ISO certification, and military-grade THF4 lens technology ensuring precision and stability across demanding production environments.

Why Choose Our Z4 100W Laser Tube?

Exceptional Longevity & Stability

Your generation can't bear downtime caused by control corruption. Our item highlights a specialized inside catalyst coating that avoids carbon monoxide buildup, guaranteeing steady control yield all through its operational life.

The tube can be put away for up to 5 a long time without execution rot. This implies you can keep reinforcement stock without stressing around shelf-life confinements. Indeed after 12 months of seriously utilize, you'll involvement negligible control drop-off.

Superior Beam Quality for Precision Work

Fine detail work requests remarkable bar characteristics. With a pillar disparity point of ≤3.0 mrad and around 6mm spot distance across, this tube conveys the exactness your applications require.

The essential transverse mode (TEM00) guarantees a concentrated, high-density pillar spot. This interprets to cleaner cuts, better inscriptions, and diminished fabric squander in your generation handle.

Engineered for Industrial Environments

Manufacturing facilities aren't always pristine. Our product is built with robust high-voltage insulation and specialized coating that maintains discharge stability even in high-humidity and dusty conditions.

The reinforced water-cooling jacket design minimizes thermal lens effects at maximum power output. This means consistent performance whether you're running short jobs or 24/7 production cycles.

Technical Specifications

Versatile Application Scenarios

Heavy-Duty Industrial Signage

You can cut 15-20mm thick acrylic and MDF with clean, polished edges. The product maintains beam stability in continuous operation, making it perfect for signage manufacturers running multiple shifts.

Textile & Garment Processing

High-speed automated cutting demands rapid response time. Our tube provides the quick ignition (6-9mA) and stable output needed for intricate lace and leather perforation without material scorching.

Precision Die-Board Manufacturing

Packaging die production requires consistent power to penetrate high-density plywood with minimal kerf width. The product delivers exactly that repeatability you need job after job.

Multi-Material Workshops

From acrylic to wood, leather to cloth—this tube adapts to various non-metallic materials. Its wide material compatibility means you can diversify your service offerings without changing laser sources.

Key Performance Advantages

Energy Efficiency You Can Measure

High photoelectric conversion efficiency translates directly to your bottom line. You'll consume less power per cut compared to older tube technology, reducing operational costs month after month.

Non-Contact Processing Benefits

Your materials stay pristine. No deformation, no burrs, no mechanical stress points that could compromise finished product quality or require secondary finishing operations.

Compact Integration

The compact 80mm diameter structure makes installation straightforward. Whether you're upgrading existing equipment or building new machines, our tube integrates seamlessly with various laser machine configurations.

Minimal Maintenance Requirements

Low failure rate means your technicians spend less time troubleshooting and more time on productive work. Combined with our 450-day warranty, you gain genuine peace of mind.

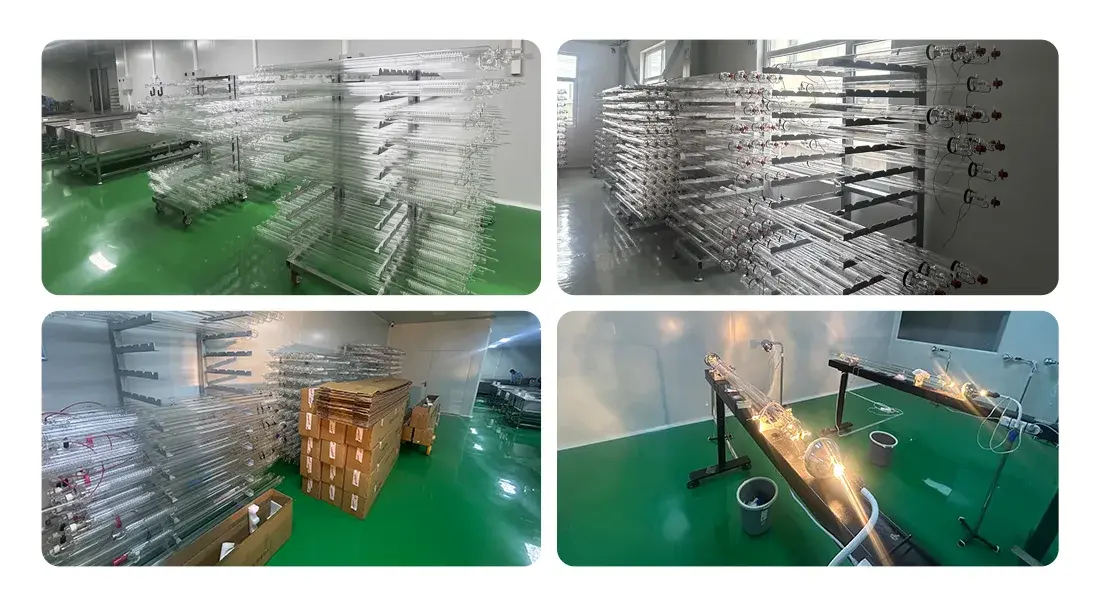

Quality Assurance & Manufacturing Excellence

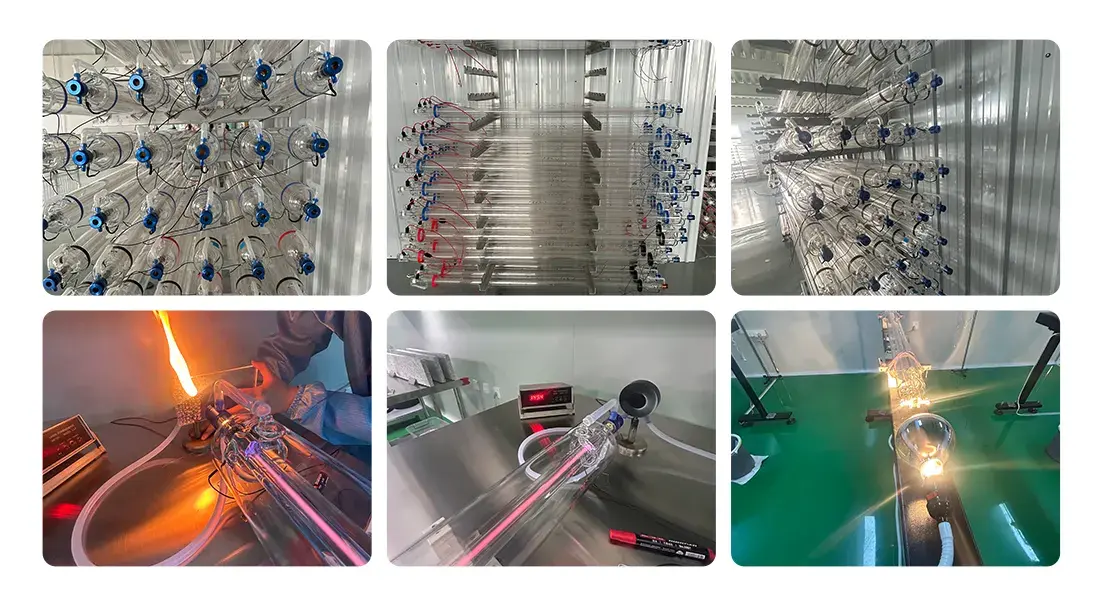

Every z4 100W laser tube undergoes rigorous multi-stage inspection before leaving our ISO-certified facility. We conduct optical power stability tests ensuring ±3% fluctuation tolerance over continuous 4-hour operation.

Our beam profile analysis confirms >95% Gaussian distribution (TEM00 mode). Vacuum leakage testing using helium mass spectrometry guarantees hermetic seals, while high-voltage insulation tests prevent arcing issues.

Each tube completes a 48-hour intermittent aging cycle to detect any early-stage gas decomposition or electrode issues. This comprehensive quality control process ensures you receive only production-ready tubes.

Customization & Global Support

Require particular arrangements? We offer OEM and ODM administrations custom fitted to your specialized necessities. Our designing group can customize machine structures, capacities, and handling arrangements for your special generation environment.

With vital coordinations associations, we guarantee dependable universal shipping to your area. Our adequate stock bolsters quick delivery—standard generation lead time is inside 14 trade days for pressing projects.

FAQ

Q: How long can I anticipate the item to last?

A: Beneath ideal working conditions (20-25mA current), the tube gives up to 10,000 hours of benefit life—approximately 1.5 times longer than standard showcase alternatives.

Q: What's the contrast between 100W target control and 130W greatest power?

A: The 100W target control is the evaluated yield for reliable, long-term operation. The 130W most extreme gives headroom for top execution when cutting thicker materials, in spite of the fact that supported utilize at most extreme isn't suggested for longevity.

Q: Can this tube work with my existing laser cutter?

A: The item highlights industry-standard measurements (1450mm length, 80mm breadth) and is congruous with most CO2 laser cutting and etching machines. Confirm your machine's tube mounting details to affirm fit.

Q: What cooling prerequisites does this tube have?

A: The tube requires water-cooling circulation to keep up ideal working temperature. Guarantee your chiller can handle the warm stack and keep up steady water temperature for best performance.

Q: Is the 450-day guarantee international?

A: Yes, our 450-day guarantee and specialized bolster apply universally. We give establishment direction, operation preparing, and support help in any case of your location.

Q: How ought to I store save tubes?

A: Store tubes on a level plane in their unique bundling, absent from coordinate daylight and extraordinary temperatures. Legitimately put away tubes keep up execution characteristics for up to 5 a long time.
