Best W series CO2 laser tube for engraving and cutting

The W Series CO₂ laser tube is always the best choice for companies that need accuracy and durability when looking at laser tube options for industrial engraving and cutting tasks. These sealed carbon dioxide laser tubes provide stable power outputs between 80W and 150W. They are designed to handle ongoing engraving tasks on non-metallic materials while keeping high beam quality. The W Series CO₂ laser tube has special coats on the catalysts and better ways to get rid of heat, which stop the usual problems with power loss that happen with regular glass tubes during long production runs.

Introduction

In modern industrial settings, picking the right laser tube is a key factor in determining how well a machine works, how much it costs to maintain, and the quality of the products it makes. The W Series CO₂ laser tube solves important operating problems that wholesalers, OEM clients, and fabrication shops in North America and other countries face. This guide looks at the technical specs, performance traits, care procedures, and buying factors that you need to know in order to make smart investment choices. Whether you run a small printing business or sell laser tools to many different companies, these core factors have a direct effect on your ability to make money and keep customers happy.

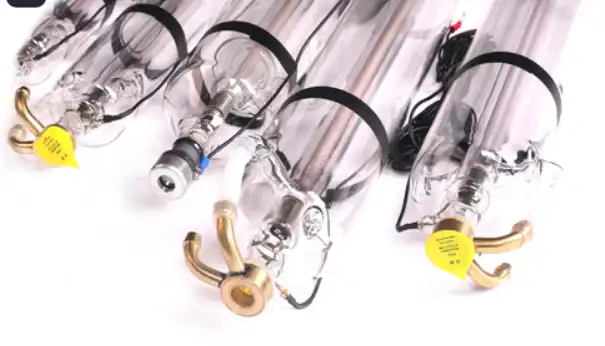

Understanding W-Series CO₂ Laser Tubes

Core Technology and Operating Principles

The W Series CO₂ laser tube uses sealed-off carbon dioxide laser technology, which uses an electrical discharge to make coherent light at a wavelength of 10.6 micrometers from a gas blend of CO₂, nitrogen, and helium. Open-cycle systems need to keep adding gas, but these sealed tubes keep the gas pure by using materials inside that rejoin molecules that have become separated while they are working. This shape makes working lifetimes much longer than those of regular glass tubes.

When it comes to managing heat, the optimized structural design in W Series CO₂ laser tubes improves thermal stability compared with conventional glass tube designs. The laser's heat quickly escapes through the metal frame, stopping any hot spots that could lead to failure before they're supposed to. This temperature stability makes sure that the power output stays the same even after 12 months of nonstop use. This solves a big problem because lower-quality tubes may experience noticeable power degradation over time.

Cooling System Requirements

Proper cooling is still necessary to get the most out of a tube's performance and life. Industrial-grade water chillers are needed to keep the coolant temperature between 15°C and 25°C for the W Series CO₂ laser tube. Water comes in at the bottom and goes out at the top. This lets natural water circulation help coolant flow and keep air bubbles from building up inside the cooling jacket. Any air that gets trapped makes insulating gaps that cause thermal stress cracks in the glass envelope.

Beam Quality Characteristics

The beam quality of W Series CO₂ laser tubes is better than that of cheaper options. Acrylic, wood, leather, and cloth can all be engraved with great detail thanks to the small light spot created by optimized optical components. The TEM00 transverse mode makes sure that the energy is spread out evenly, which makes clean cuts without too much burning or warping of the material. This way of working without touching the parts takes away the mechanical stress that can cause them to twist, which happens a lot with router-based cutting systems.

Comparing W Series CO₂ Laser Tubes with Other Options

Glass Tubes vs. W Series Construction

While standard glass CO₂ tubes are the least expensive choice, they are also the most fragile and only last an average of 1,200 to 1,800 hours of use. The W Series CO₂ laser tube has a 1.5 times longer lifespan thanks to better materials and catalytic integration, which means it can achieve a longer service life under recommended operating conditions in the right circumstances. This longer reliability cuts down on the number of replacements needed and the costs that come with them.

RF Metal Tubes vs. Sealed Glass Systems

Radio-frequency excited metal tubes have better power stability and are small enough to fit on high-speed production lines. However, they usually cost three to five times more to buy at first than protected glass options. The W Series CO₂ laser tube is in the middle. It has a stable power output that's good for ongoing industrial work, and its prices are low enough that small to medium-sized manufacturers can afford them.

Power Output Considerations

The W Series CO₂ laser tube has types that run from 80W to 150W, which is the right amount of power for most engraving and thin-material cutting tasks. At these power levels, acrylic pieces up to 20 mm thick, wood up to 15 mm thick, and different fabric or leather goods can be processed quickly and easily. Tubes with more wattage can cut faster and through thicker materials, but they need cooling systems and power sources that are proportionately bigger.

Knowing these differences helps buying professionals match the specs of tools to the amount of work that needs to be done, the type of material used, and the budget that is available. A 100W W Series CO₂ laser tube is often the best balance for companies that work with a variety of materials and don't need to make a lot of things.

How to Optimize and Maintain Your W Series CO2 Laser Tube

Essential Maintenance Protocols

Cleaning optical parts on a regular basis keeps the quality of the beam and stops power loss. The output coupler needs to be checked once a month for dust or residue that could scatter laser energy. Use isopropyl alcohol on lint-free cloths to clean optical surfaces. Be careful not to use too much pressure, as that could damage anti-reflective coats.

Quality of coolant has a direct effect on how long tubes last. If you use distilled water a lot, you should replace it every three to six months. Also, check the water lines for green growth or mineral deposits. Adding approved water chemicals helps keep the cooling jacket from getting contaminated with bacteria and rust.

Operating Parameter Optimization

The extended service life expectancy is best reached by keeping the working current below 26–28 mA. Power sources may allow higher currents to boost output, but this speeds up the breakdown of the electrodes and gas mixture. As long as you follow the suggested settings, the W Series CO₂ laser tube will keep delivering power reliably for its entire useful life.

When the beams are properly aligned, power doesn't leak through the optical path for no reason. The laser spot should stay in the middle of all the mirrors and be pointed straight at the surface of the object. When things aren't lined up right, partial beam clipping happens. This lowers the cutting power and makes the processing results uneven.

Troubleshooting Common Issues

When tubes fire but don't cut well, it's usually because the eyes are dirty or not lined up right. By cleaning each mirror and lens in a planned way, performance is often restored without having to replace the tubes. Internal tube condition should be evaluated through power performance and operational stability rather than visual inspection alone that can be seen through the glass case.

If bubbles appear in cooling lines, you need to fix them right away. Tilting the tube a little while the coolant is running helps get rid of air that is stuck inside. If bubbles keep appearing, it means there may be leaks that need to be checked out by a professional before heat damage happens.

Procurement Guide for W Series CO2 Laser Tubes

Identifying Authorized Suppliers

If you only buy real W Series CO₂ laser tubes from makers you know and trust, you can avoid getting fakes that don't have the right catalyst processes or quality control standards. Genuine tubes typically include serial numbers and factory testing documentation that show the real output specs. By asking for these proof papers before you buy, you can be sure that the product is real.

Shandong Yuhui Laser Technology Co., Ltd. has CE and ISO licenses that prove the quality of their products. These globally known licenses show that a company meets European safety standards and quality management guidelines. This gives distributors who work with controlled markets peace of mind.

Bulk Purchasing Advantages

Customers who are businesses usually get savings when they buy a lot of tubes or whole laser systems. Different suppliers have different minimum order amounts, but building long-term relationships with them can often get you better prices and faster service during times of high demand. Established makers like Yuhui Laser offer a 14-day production lead time, which makes it possible to handle inventory quickly and cheaply.

Warranty and After-Sales Support

The 450-day warranty that comes with W Series CO₂ laser tubes is much longer than the normal warranty time in the industry. This shows that the manufacturer is confident in the durability of the product. This extra safety keeps the value of your investment safe and lowers the total cost of ownership by giving you full technical help. Help with installation, operational training, and troubleshooting makes sure that the system fits in seamlessly with current work environments.

International shipping plans need to be coordinated with experienced freight partners who know how to handle laser equipment. Proper packing keeps fragile glass parts from getting damaged during shipping, and correct customs paperwork makes it easier to get goods across borders.

Why Choose Yuhui Laser's W Series CO₂ Laser Tubes for Your Business

Advanced Engineering Features

Our W Series CO₂ laser tubes are made with a number of design features that improve performance and deal with real-world production problems. The optimized structural design helps maintain alignment stability that keeps it from getting out of line due to vibration or heat expansion. The design's excellent heat dissipation keeps the working temperatures stable even when the machine is running continuously for multiple shifts. This stops power loss problems that mess up production plans.

The optimized optical components used in our W Series CO₂ laser tubes make it possible to scan and engrave very precisely. These precise parts create focused beam spots that make it possible to copy artwork and cut out patterns with great accuracy that cheaper tubes can't do. Customers say that the results are the same whether they are working with soft leather items or thick hardwoods.

Proven Longevity and Storage Stability

Thanks to progress in material science, W Series CO₂ laser tubes can keep working properly for up to five years before they are installed. This high level of shelf stability lets distributors keep stock without worrying about products going bad and losing value. The internal catalyst layer keeps the purity of the gas mixture safe no matter how long it is stored, unlike regular tubes that need to be used right away after they are made.

Operational testing shows that the power output stays the same for the first year of constant use. This means that the annoying power drop that happens with regular tubes doesn't happen with these tubes. This means that your customers can count on consistent quality standards and expected production costs.

Comprehensive Application Range

The W Series CO₂ laser tubes can be used in a wide range of production processes because they can adapt to different types of materials. Acrylic makers can cut clean edges without melting the material too much. Woodworkers work with complicated carving designs. The people who make leather things work with soft materials without getting burned. Textile processes cut designs out of cloth with edges that are sealed to keep them from fraying. This wide range of skills means that shops that handle a wide range of customer requests don't have to spend as much on new tools.

The improved electro-optical conversion efficiency gives you the most cutting power with the least amount of electricity use. Energy-efficient operation cuts down on energy costs over thousands of hours of use, which boosts total profitability and is especially important for small and medium-sized manufacturers that are trying to save money.

Installation and Integration Advantages

The small size of the structure makes it easier to put in a variety of laser machine designs made by different companies. Standardized mounting points and electrical connections make it possible for it to work with most controller systems and power sources on the market right now. This freedom is helpful for OEM clients who are making custom equipment or shops that want to upgrade tools instead of buying whole systems.

Technical support teams help match the specs of a tube to the needs of a particular application. Whether you need advice on the best power levels, the size of the cooling system, or the operational factors, our expert engineers can help you get the most out of your investment.

Conclusion

The W Series CO₂ laser tube is a well-thought-out option that fills the gap between cheap glass tubes and high-end RF metal systems. Small and medium-sized makers, distributors, and OEM equipment builders can easily meet their business needs and budget constraints thanks to its improved durability, stable power supply, and reasonable pricing structure. The special layer on the catalyst, advanced heat management, and precise optical parts all work together to give real performance benefits. These benefits directly lead to higher production efficiency and lower maintenance costs. When a business buys W Series technology, it gets reliable working power, as well as longer warranty coverage and full expert support.

FAQ

What differentiates authentic W Series tubes from counterfeit products?

Real W Series CO2 Laser tubes have a unique brownish-red catalyst coating that can be seen through the glass envelope. They also have unique production numbers that can be checked against power test reports from the maker. These papers show that the tube was properly tested for quality and that it includes genuine catalyst materials that are needed for longer operation.

How long can W Series tubes typically operate before replacement?

As long as the tubes are properly cooled and the current stays between 26 and 28 mA, the W Series CO₂ laser tube will last for about 2,700 to 3,000 hours. This means that they will last about 1.5 times as long as similar normal glass tubes, which will greatly reduce the number of times they need to be replaced and the costs that come with it.

What cooling system specifications does the W Series require?

Keeping the cooling temperature between 15°C and 25°C is important for industrial-grade water chillers like the CW-5000 or CW-5200 types to keep working at their best. The right water flow, with an opening at the bottom and an exit at the top, keeps air from building up, which would damage the glass envelope from thermal stress.

Can W Series tubes process metal materials?

These W Series CO₂ laser tubes are best at working with non-metallic materials like plastic, wood, leather, cloth, and other similar organic materials. The 10.6-micrometer wavelength of CO₂ lasers is less effective for processing highly reflective metals. This means that limited metal marking applications may be possible with coated or treated surfaces.

Partner with Yuhui Laser for Premium W Series CO₂ Laser Tube Solutions

You can get approved W Series CO₂ laser tubes directly from the factory through Yuhui Laser. These tubes are backed by ISO quality standards and CE compliance paperwork. As a trusted producer of W Series CO₂ laser tubes, we can offer affordable pricing while still meeting the high standards of quality that professional manufacturing operations require. The warranty lasts for 450 days and includes full expert help. This protects your investment during long production cycles.

Our engineering team can customize our products to meet the specific integration needs of OEM clients who are making custom equipment setups. You can email our business-to-business salespeople at jianghui@yuhui-laser-tech.com to talk about bulk discounts for distributors, technical requirements for specific uses, or creating a unique solution. You can find full information about the products on yuhui-laser-tech.com, download technical paperwork, and ask for demonstration units to see for yourself if the claims of performance are true.
